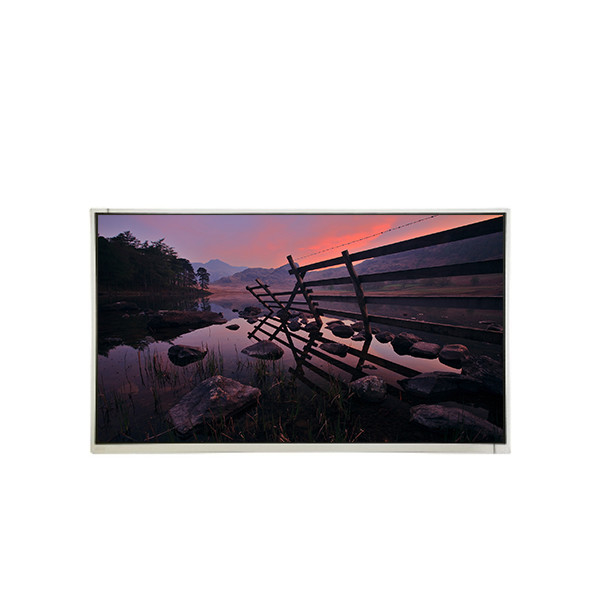

M238DAN01.5UA CELL 23.8 inch 2560*1440 LCD Panel Display

Brand Name:	AUO
Model Number:	M238DAN01.5UA CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238DAN01.5UA CELL

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Transmittance:

3.99% (Typ.)(with Polarizer)

Lamp Type:

No B/L

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M238DAN01.5UA CELL 23.8 inch 2560*1440 LCD Panel Display

M238DAN01.5UA CELL LCD Panel Product details :

Brand	AUO
Model P/N	M238DAN01.5UA CELL
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.85(W)×296.35(H) mm
Bezel Opening	-
Outline Dim.	534.04(H)×308.16(V)×1.29(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Plate Thickness	-
Transmittance	3.99% (Typ.)(with Polarizer)
Support Color	16.7M 76%NTSC
Light Source	No B/L
Weight	520g (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 8 source chips
Interface Type	LVDS (4 ch, 8-bit), 70 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M238DAN01.5UA CELL LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each M238DAN01.5UA CELL LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

M238DAN01.5UA CELL LCD Panel Shipping and Package :

M238DAN01.5UA CELL 23.8 inch 2560*1440 LCD Panel Display 0

M238DAN01.5UA CELL LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

M238DAN01.5UA CELL LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

M238DAN01.5UA CELL LCD Panel FAQ :

Q: When would you ship,IF I order M238DAN01.5UA CELL ?

A: The order are shipped within 1-2 working days after received the payment.

Q: How to order M238DAN01.5UA CELL ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: Can you test lcd panel M238DAN01.5UA CELL before shipping?

A: Don't Worry , The M238DAN01.5UA CELL will be tested ok before shipping

Q: What happen if M238DAN01.5UA CELL received can't work ?

A: Our M238DAN01.5UA CELL was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
