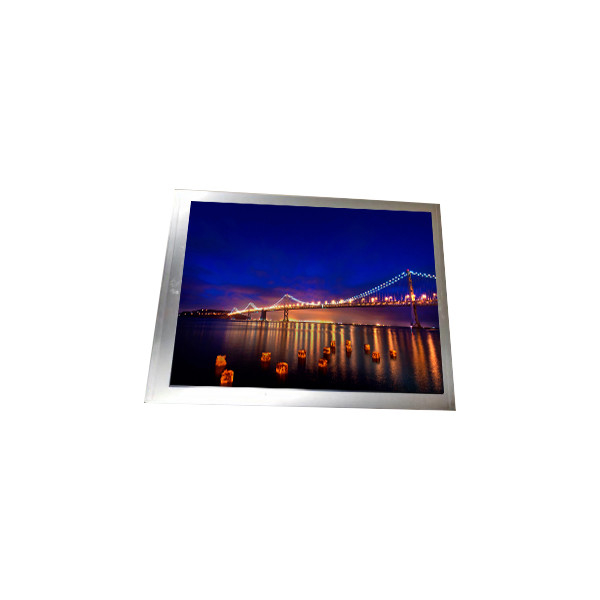

LX066A1BA03 6.6 inch 1080*2400 a-Si TFT-LCD Panel Display

Brand Name:	Sharp
Model Number:	LX066A1BA03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LX066A1BA03

Diagonal Size:

Panel Type:

CG-Silicon, CELL , Full Cell

Resolution:

1080(RGB)×2400 400PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.526(W)×152.136(H) Mm

Color Depth:

16.7M 76% NTSC

Lamp Type:

No B/L

Refresh Rate:

120Hz

Used For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

LX066A1BA03 6.6 inch 1080*2400 a-Si TFT-LCD Panel Display

LX066A1BA03 LCD Panel Product details :

Brand	Sharp
Model P/N	LX066A1BA03
Diagonal Size	6.6"
Panel Type	CG-Silicon, CELL , Full Cell
Resolution	1080(RGB)×2400 400PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.526(W)×152.136(H) mm
Bezel Opening	-
Outline Dim.	69.926(H)×156.166(V) ×0.3(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Operating Mode	New Mode2, Normally Black, Transmissive
Plate Thickness	0.15+0.15 mm
Transmittance	4.18% (Typ.)
Support Color	16.7M 76% NTSC
Light Source	No B/L
Weight	8.10g (Typ.)
Designed For	Mobile Phone
Frame Rate	120Hz
Touch Panel	Without
D-IC Detail	COG Suggest HX83112B
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

LX066A1BA03 LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each LX066A1BA03 LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

LX066A1BA03 LCD Panel Shipping and Package :

LX066A1BA03 6.6 inch 1080*2400 a-Si TFT-LCD Panel Display 0

LX066A1BA03 LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

LX066A1BA03 LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

LX066A1BA03 LCD Panel FAQ :

Q: When would you ship,IF I order LX066A1BA03 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
