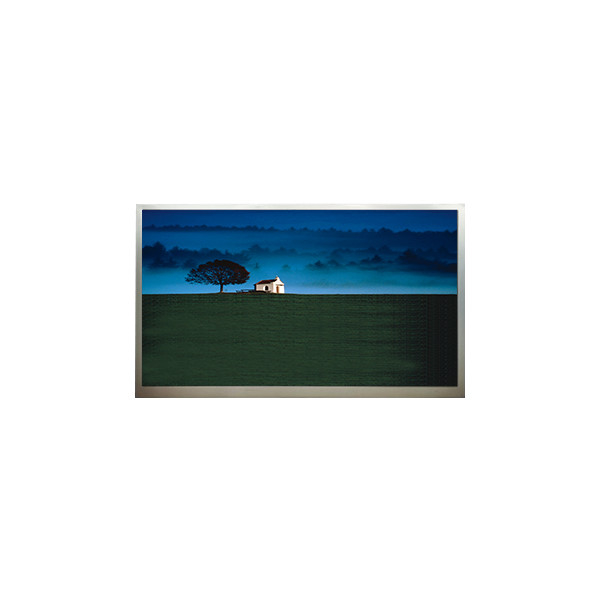

18.4 inch N184H3-L02 1080p TFT LCD Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | CMO |
Model Number: | N184H3-L02 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | N184H3-L02 | Diagonal Size: | 18.4" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 119PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 408.96(W)×230.04(H) Mm |
Used For: | Laptop | Touchscreen: | Without |
Product Description
18.4 inch N184H3-L02 1080p TFT LCD Display Panel
N184H3-L02 LCD Panel Product details :
Brand | CMO |
Model P/N | N184H3-L02 |
Diagonal Size | 18.4" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 119PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 408.96(W)×230.04(H) mm |
Bezel Opening | 413.11(W)×234.24(H) mm |
Outline(mm) | 422.5(W)×248(H)×6.5(D) |
Luminance | 200 (Typ.)(cd/m²) |
Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
Good View at | 6 o'clock |
Color Depth | 262K 62% NTSC |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Refresh Rate | 60Hz |
Treatment | Glare (Haze 0%), Hard coating (3H) |
Contrast Ratio | 650 : 1 (Typ.) (TM) |
Work Mode | TN, Normally White, Transmissive |
Response | 2/6 (Typ.)(Tr/Td) ms |
Backlight | 1 pcs CCFL , 15K hours , No Driver |
Used for | Laptop |
Touchscreen | Without |
Signal Type | LVDS (2 ch, 6-bit), 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
N184H3-L02 LCD Panel Shipping and Package :
N184H3-L02 LCD Panel FAQ :
Q: What happen if the N184H3-L02 I receive can't work ?
A: The N184H3-L02 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel N184H3-L02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of N184H3-L02 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
