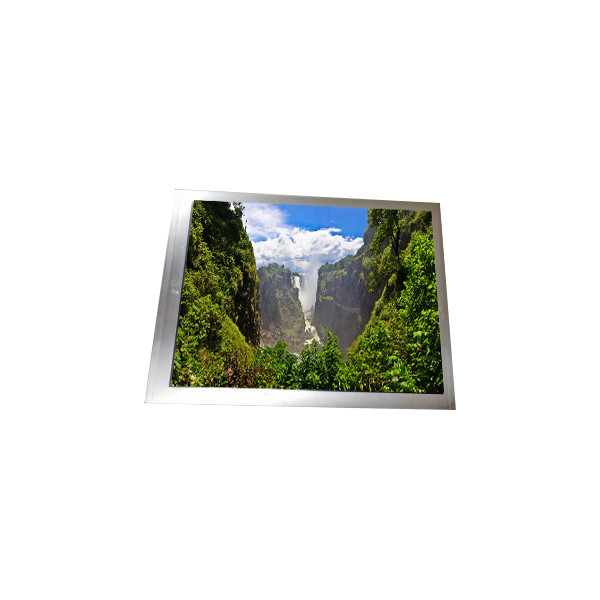

M270DTN01.9 CELL 27.0 inch 2560*1440 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M270DTN01.9 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M270DTN01.9 CELL | Diagonal Size: | 27.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 596.736(W)×335.664(H) Mm |
| Operating Mode: | TN, Normally White, Transmissive | Lamp Type: | No B/L |
| Glass Depth: | 0.50+0.50 Mm | Used For: | Desktop Monitor、Gaming |
Product Description
M270DTN01.9 CELL 27.0 inch 2560*1440 LCD Panel Display
M270DTN01.9 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | M270DTN01.9 CELL |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline Dim. | 608.3(H)×349.3(V)×1.44(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 4.3% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | 630g (Typ.) |
| Designed For | Desktop Monitor,Gaming |
| Frame Rate | 165Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 8 source chips |
| Interface Type | eDP (4 Lanes), 40 pinsConnector |
| Power Supply | 12V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
M270DTN01.9 CELL LCD Panel Specification :
Quality Assurance
Comprehensive Quality Check and Testing
Each M270DTN01.9 CELL LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.
M270DTN01.9 CELL LCD Panel Shipping and Package :
M270DTN01.9 CELL LCD Panel Specification Estimated Delivery Time :
Standard Shipping
Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.
Expedited Shipping
For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.
Important Note on Delivery Times
Potential Delays
We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.
M270DTN01.9 CELL LCD Panel Return Policy :
Contact Us Before Returning Items
It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.
Defective or Damaged Items
If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.
Restocking Fees
A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.
Shipping Costs for Incorrect Orders
If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.
Packaging Requirements for Returns
To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:
Proper Packaging Materials
Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.
Avoid Inadequate Packaging
Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.
M270DTN01.9 CELL LCD Panel FAQ :
Q: How do you ship my goods M270DTN01.9 CELL ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen M270DTN01.9 CELL at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of M270DTN01.9 CELL ?
A: 90 days warranty .
Want to Know more details about this product
