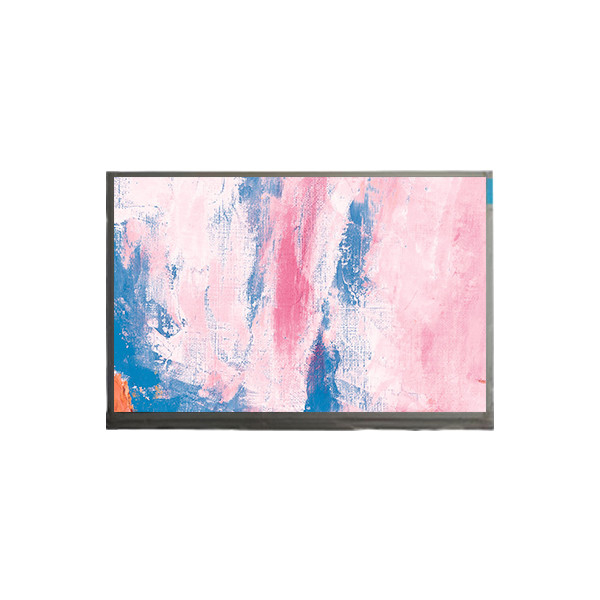

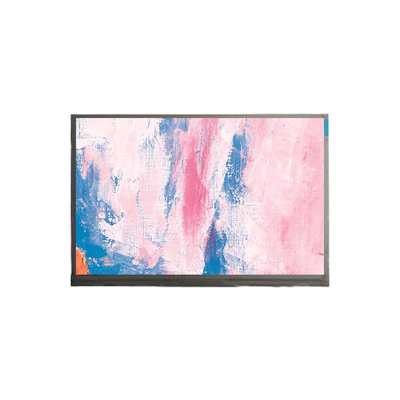

18.5 inch M185B1-L05 1366*768 TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M185B1-L05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M185B1-L05 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 409.8(W)×230.4(H) Mm |
| Used For: | Desktop Monitor | Touchscreen: | Without |
Product Description
18.5 inch M185B1-L05 1366*768 TFT LCD Module
M185B1-L05 LCD Panel Product details :
| Brand | CMO |
| Model P/N | M185B1-L05 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.37(W)×254.6(H)×16.75(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 2 pcsCCFL, 40K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.97/2.00Kgs (Typ./Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
M185B1-L05 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
M185B1-L05 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
M185B1-L05 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
M185B1-L05 LCD Panel Shipping and Package :
M185B1-L05 LCD Panel FAQ :
Q: What happen if the lcd panel M185B1-L05 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about M185B1-L05 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order M185B1-L05 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order M185B1-L05 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
