LCD Screen Display Panel

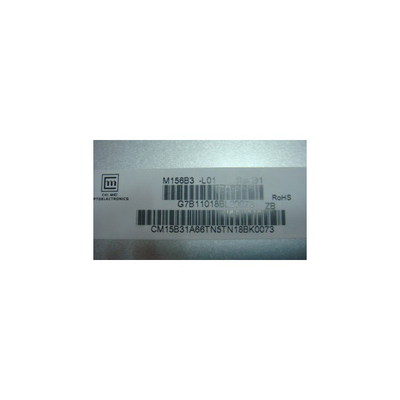

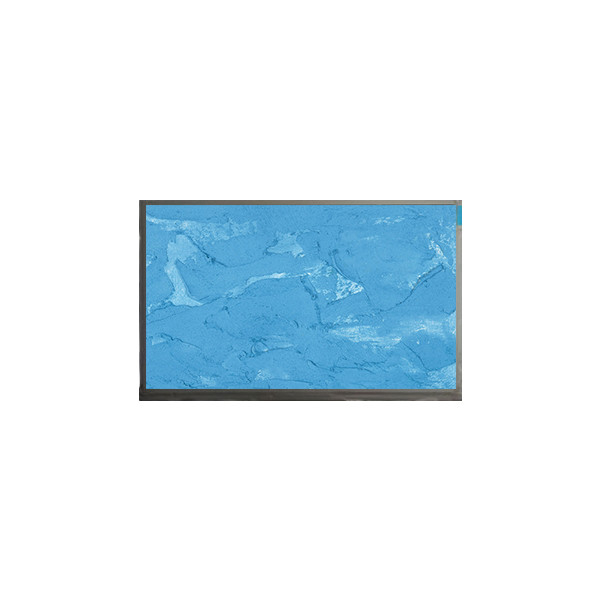

1366*768 M156B3-L01 15.6 inch 60Hz LCD Module

All Category

Floor Standing Digital Signage

1366*768 M156B3-L01 15.6 inch 60Hz LCD Module

Brand Name:	CMO
Model Number:	M156B3-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M156B3-L01

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Used For:

Desktop Monitor

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

1366*768 M156B3-L01 15.6 inch 60Hz LCD Module

M156B3-L01 LCD Panel Product details :

Brand	CMO
Model P/N	M156B3-L01
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	347.5(W)×196.8(H) mm
Outline Dim.	363.8(H)×215.9(V)×11.6(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	-
Response Time	2/6 (Typ.)(Tr/Td)
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 62%NTSC
Light Source	WLED [10S9P], 25K hours, W/O Driver
Weight	1.08Kgs (Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M156B3-L01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

M156B3-L01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

M156B3-L01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

M156B3-L01 LCD Panel Shipping and Package :

1366*768 M156B3-L01 15.6 inch 60Hz LCD Module 0

M156B3-L01 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of M156B3-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of M156B3-L01 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of M156B3-L01?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of M156B3-L01 ?

A: we will give you tracking number then you can trace your order from website.
