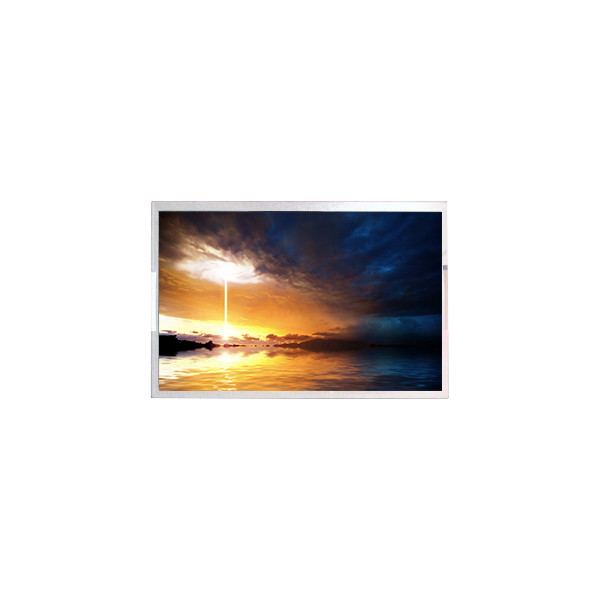

EC60QBC75.B 12.6 inch 1600*2560 LCD Panel Display Module

Brand Name:	EDO
Model Number:	EC60QBC75.B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

EC60QBC75.B

Diagonal Size:

12.6"

Panel Type:

AM-OLED, OLED

Resolution:

1600(RGB)×2560, WQXGA 239PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

169.632(W)×271.411(H) Mm

Outline Dim.:

175.232(H)×275.411(V) ×0.7(D) Mm

Lamp Type:

Self , 15K Hours

Best View On:

Symmetry

Used For:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

EC60QBC75.B 12.6 inch 1600*2560 LCD Panel Display Module

EC60QBC75.B LCD Panel Product details :

Brand	EDO
Model P/N	EC60QBC75.B
Diagonal Size	12.6"
Panel Type	AM-OLED, OLED
Resolution	1600(RGB)×2560, WQXGA 239PPI
Pixel Format	RGB Vertical Stripe
Active Area	169.632(W)×271.411(H) mm
Bezel Opening	-
Outline Dim.	175.232(H)×275.411(V) ×0.7(D) mm
Treatment	-
Luminance	400 cd/m² (Typ.)
Contrast Ratio	100000:1 (Min.) (TM)
View Direction	Symmetry
Response Time	2 (Max.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	-
Support Color	1.07B 100% DCI-P3
Light Source	self , 15K hours
Weight	TBD
Designed For	Pad & Tablet
Frame Rate	120Hz
Touch Panel	-
D-IC Detail	COF Built-in RM692E6
Interface Type	MIPI (2 ch, 4 data lanes) , 102 pins Connector
Power Supply	1.8/3.3/7.3/4.6/-3.8V (Typ.)(VDDI/VCI/AVDD/ELVDD/ELVSS)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

EC60QBC75.B LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each LH176J04-TH01 LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

EC60QBC75.B LCD Panel Shipping and Package :

EC60QBC75.B 12.6 inch 1600*2560 LCD Panel Display Module 0

EC60QBC75.B LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

EC60QBC75.B LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

EC60QBC75.B LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of EC60QBC75.B ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of EC60QBC75.B via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods EC60QBC75.B ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of EC60QBC75.B ?

A: Of course!sample order is welcome !
