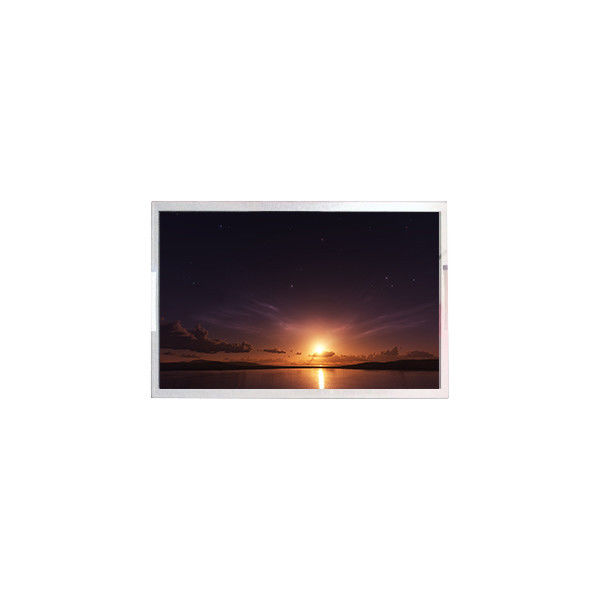

E666FCC74.A 6.7 inch 1080*2400 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | EDO |
| Model Number: | E666FCC74.A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | E666FCC74.A | Diagonal Size: | 6.7" |
|---|---|---|---|
| Panel Type: | AM-OLED, Assembly , Full Module | Resolution: | 1080(RGB)×2400 322PPI |
| Pixel Format: | Sub-Pixel Rendering | Active Area: | 69.44(W)×154.32(H) Mm |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥1600) | Support Color: | 16.7M DCI-P3 |
| Best View On: | Symmetry | Used For: | Mobile Phone |
Product Description
E666FCC74.A 6.7 inch 1080*2400 LCD Panel Display
E666FCC74.A LCD Panel Product details :
| Brand | EDO |
| Model P/N | E666FCC74.A |
| Diagonal Size | 6.7" |
| Panel Type | AM-OLED, Assembly , Full Module |
| Resolution | 1080(RGB)×2400 322PPI |
| Pixel Format | Sub-Pixel Rendering |
| Active Area | 69.44(W)×154.32(H) mm |
| Bezel Opening | - |
| Outline Dim. | 73.12(W)×160.89(H) ×3.03(D) mm |
| Treatment | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 100000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 2 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) |
| Operating Mode | - |
| Support Color | 16.7M DCI-P3 |
| Light Source | self |
| Weight | 42.0g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | MIPI (4 data lanes) , 38 pins FPC |
| Power Supply | 1.8/3.0/7.3/4.6/-3.2V (Typ.)(VDDIO/VCI/AVDD/ELVDD/ELVSS) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
E666FCC74.A LCD Panel Specification :
Quality Assurance
Comprehensive Quality Check and Testing
Each LH176J03-SH03 LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.
E666FCC74.A LCD Panel Shipping and Package :
E666FCC74.A LCD Panel Specification Estimated Delivery Time :
Standard Shipping
Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.
Expedited Shipping
For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.
Important Note on Delivery Times
Potential Delays
We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.
E666FCC74.A LCD Panel Return Policy :
Contact Us Before Returning Items
It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.
Defective or Damaged Items
If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.
Restocking Fees
A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.
Shipping Costs for Incorrect Orders
If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.
Packaging Requirements for Returns
To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:
Proper Packaging Materials
Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.
Avoid Inadequate Packaging
Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.
E666FCC74.A LCD Panel FAQ :
Q: How do you ship my goods E666FCC74.A ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of E666FCC74.A ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel E666FCC74.A at a very low value ?
A: Yes , we can . pls inform us before shipping .
Want to Know more details about this product
