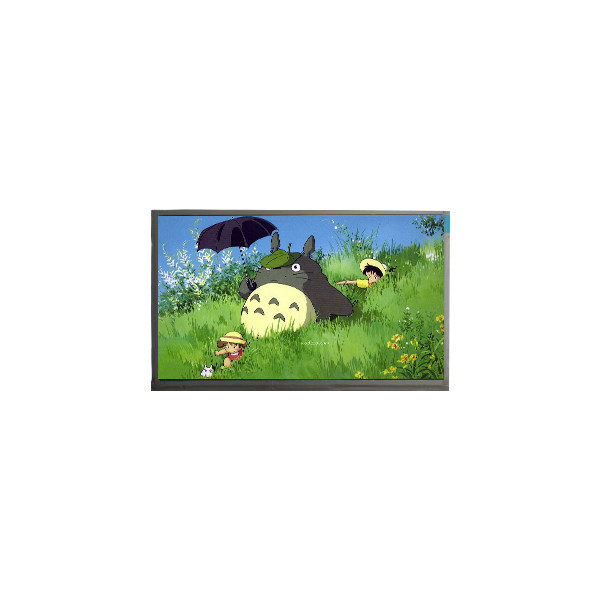

800*480 9.0 inch AT090TN10 250 cd/m2 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | AT090TN10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AT090TN10 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 104PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 198(W)×111.696(H) Mm |
| Used For: | Digital Photo Frame ，Portable DVD Player | Touchscreen: | Without |
Product Description
800*480 9.0 inch AT090TN10 250 cd/m2 LCD Screen
AT090TN10 LCD Panel Product details :
| Brand | Chimei Innolux |
| Model P/N | AT090TN10 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 104PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198(W)×111.696(H) mm |
| Bezel Opening | 201.00(W)×114.7(H) mm |
| Outline Dim. | 211.1(W)×126.5(H) ×6.2(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 50% NTSC |
| Light Source | 3S11P WLED , 20K hours , Without Driver |
| Panel Weight | 253g (Typ.) |
| Designed For | Digital Photo Frame ,Portable DVD Player |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | TTL (1 ch, 6/8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
AT090TN10 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
AT090TN10 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
AT090TN10 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
AT090TN10 LCD Panel Shipping and Package :
AT090TN10 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel AT090TN10 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
