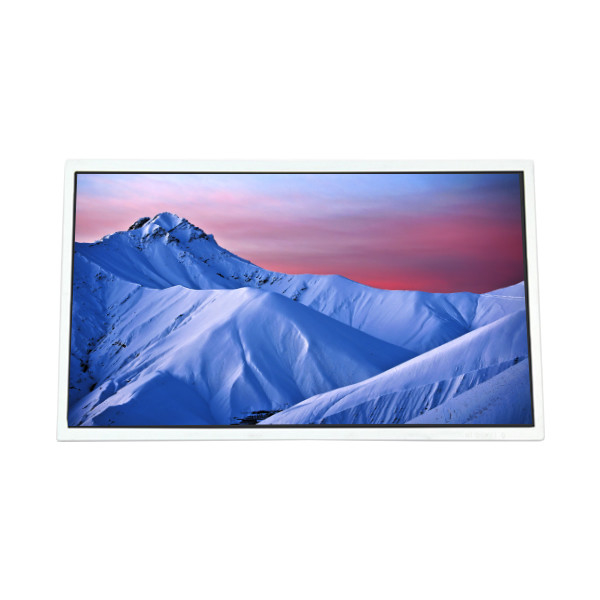

Original HT190WG1-601 19.0 inch LCD Display Panel

All Category

Floor Standing Digital Signage

Original HT190WG1-601 19.0 inch LCD Display Panel

Brand Name:	BOE
Model Number:	HT190WG1-601
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HT190WG1-601

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×255.15(H) Mm

Used For:

Desktop Monitor

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

Original HT190WG1-601 19.0 inch LCD Display Panel

HT190WG1-601 LCD Panel Product details :

Brand	BOE
Model P/N	HT190WG1-601
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×255.15(H) mm
Bezel Opening	412.24(W)×259.15(H) mm
Outline (mm)	428×278×19 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	320 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Response	1.5/3.5 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	4 pcs CCFL, 50K hours, No Driver
Mass	2.55Kgs (Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

HT190WG1-601 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

HT190WG1-601 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

HT190WG1-601 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

HT190WG1-601 LCD Panel Shipping and Package :

Original HT190WG1-601 19.0 inch LCD Display Panel 0

HT190WG1-601 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of HT190WG1-601 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of HT190WG1-601 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of HT190WG1-601 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of HT190WG1-601 ?

A: we will give you tracking number then you can trace your order from website.
