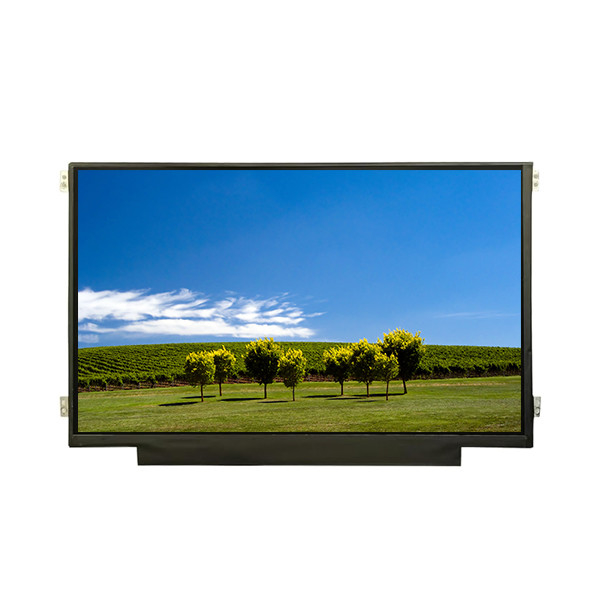

1280*720 B101EW01 V0 10.1 inch 60Hz LCD Display Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101EW01 V0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×720, WXGA 145PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 222.72(W)×125.28(H) Mm |
| Used For: | Netbook PC | Touchscreen: | Without |
Product Description
1280*720 B101EW01 V0 10.1 inch 60Hz LCD Display Monitor
B101EW01 V0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B101EW01 V0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | - |
| Outline Dim. | 243 × 146.5 × 3.6 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 180 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 12/4 (Typ.)(Tr/Td) ms |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 12K hours , With LED Driver |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B101EW01 V0 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
B101EW01 V0 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
B101EW01 V0 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
B101EW01 V0 LCD Panel Shipping and Package :
B101EW01 V0 LCD Panel FAQ :
Q: How long is the warranty of B101EW01 V0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of B101EW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B101EW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B101EW01 V0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
