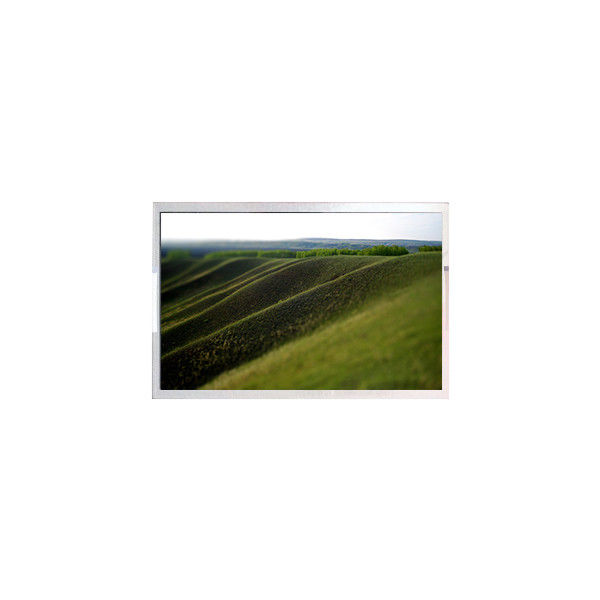

SG215HB07-1 21.5 inch 1080p LCD Panel Display

Brand Name:	CSOT
Model Number:	SG215HB07-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

SG215HB07-1

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.064(W)×267.786(H) Mm

Operating Mode:

ADS, Normally Black, Transmissive

Lamp Type:

No B/L

Best View On:

Symmetry

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

SG215HB07-1 21.5 inch 1080p LCD Panel Display

SG215HB07-1 LCD Panel Product details :

Brand	CSOT
Model P/N	SG215HB07-1
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.064(W)×267.786(H) mm
Bezel Opening	-
Outline Dim.	484.264(H)×278.386(V)×1.3(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.2% (Typ.)(with Polarizer)
Color Depth	16.7M 99% sRGB
Backlight	No B/L
Mass	0.45Kgs (Typ.)
Used for	Desktop Monitor
Refresh Rate	100Hz
Touchscreen	Without
Driver IC list	COF Built-in 4 source chips
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Max. Ratings	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

SG215HB07-1 LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each LH164Q02-SD06 LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

SG215HB07-1 LCD Panel Shipping and Package :

SG215HB07-1 21.5 inch 1080p LCD Panel Display 0

SG215HB07-1 LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

SG215HB07-1 LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

SG215HB07-1 LCD Panel FAQ :

Q: Can You declare my order of SG215HB07-1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of SG215HB07-1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods SG215HB07-1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of SG215HB07-1 ?

A: We accept T/T , Paypal , western union .
