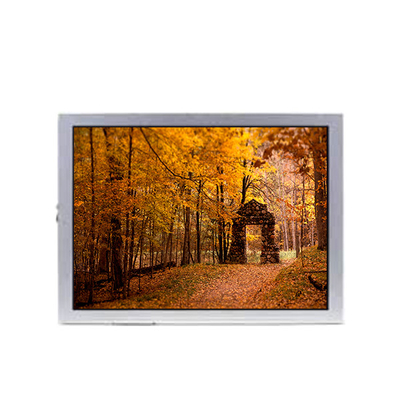

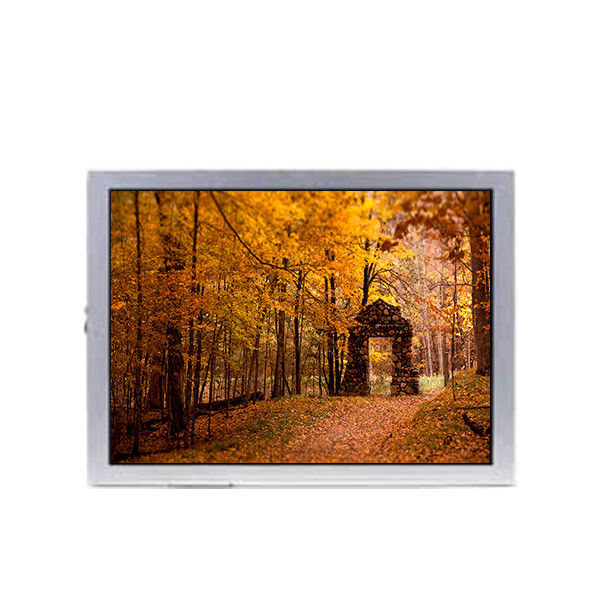

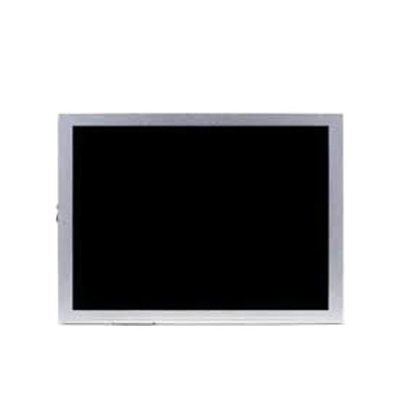

New 800*600 A080SN01 V4 8.0 inch LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080SN01 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A080SN01 V4 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 800(RGB)×600, SVGA 125PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 162(W)×121.5(H) Mm |
| Used For: | Digital Photo Frame、Portable DVD Player | Touchscreen: | Without |
Product Description
New 800*600 A080SN01 V4 8.0 inch LCD Screen
A080SN01 V4 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A080SN01 V4 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×600, SVGA 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 162(W)×121.5(H) mm |
| Bezel Opening | - |
| Outline Size | 170.1(W)×132.3(H)×1.44(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/16 (Typ.)(Tr/Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.5% (Typ.)(with Polarizer) |
| Display Colors | 262K/16.7M 50%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COGBuilt-in 2 source + 2 gate chips |
| Panel Weight | 65.0g (Typ.) |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | TTL (1 ch, 6/8-bit) + SPI, 60 pins FPC |
| Input Voltage | 3.3/11.68/15/-6.75V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C |
A080SN01 V4 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
A080SN01 V4 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
A080SN01 V4 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
A080SN01 V4 LCD Panel Shipping and Package :
A080SN01 V4 LCD Panel FAQ :
Q: How to make payment of A080SN01 V4 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of A080SN01 V4 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of A080SN01 V4 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
Want to Know more details about this product
