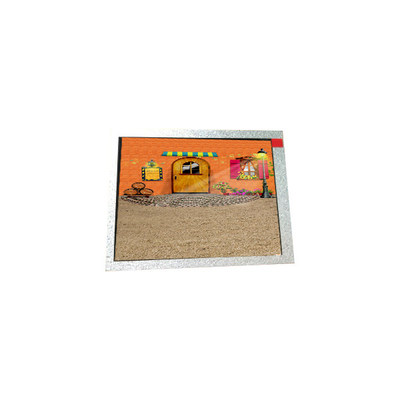

Original 7.0 inch TM070RLZ00 800*480 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070RLZ00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM070RLZ00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 157.2(W)×82.32(H) Mm |
| Used For: | Digital Photo Frame、Portable DVD Player | Touchscreen: | Without |
Product Description

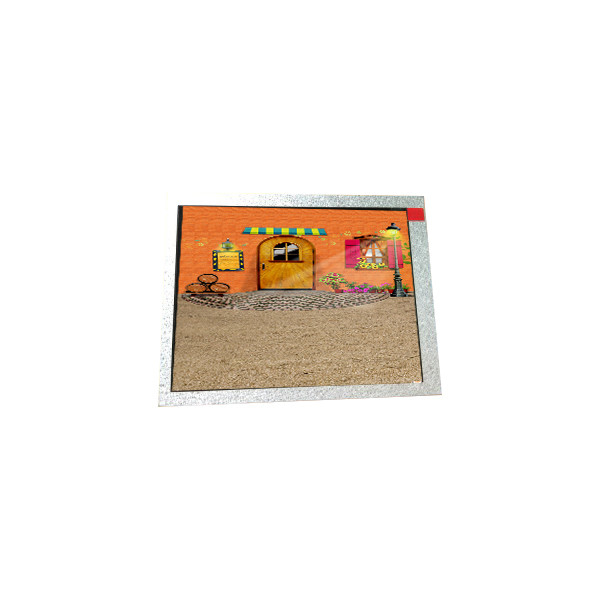

Original 7.0 inch TM070RLZ00 800*480 LCD Screen Panel
TM070RLZ00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM070RLZ00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 157.2(W)×82.32(H) mm |
| Bezel Opening | 160.2(W)×85.32(H) mm |
| Outline Size | 167(W)×93(H)×5.7(D) mm |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50%NTSC |
| Backlight | 3S10PWLED, No Driver |
| Mass | TBD |
| Used for | Digital Photo Frame,Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit), 40 pinsFPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
TM070RLZ00 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
TM070RLZ00 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
TM070RLZ00 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
TM070RLZ00 LCD Panel Shipping and Package :
TM070RLZ00 LCD Panel FAQ :
Q: Do you accept sample orders of TM070RLZ00 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of TM070RLZ00 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of TM070RLZ00 ?
A: The order will be shipped within 2-3 working days after received your payment.
