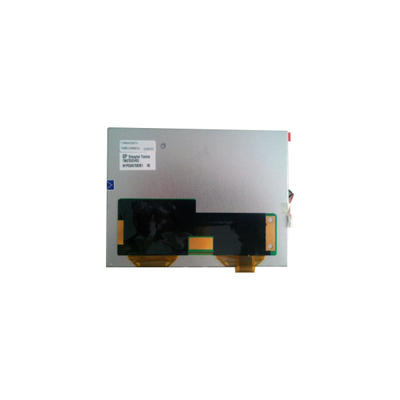

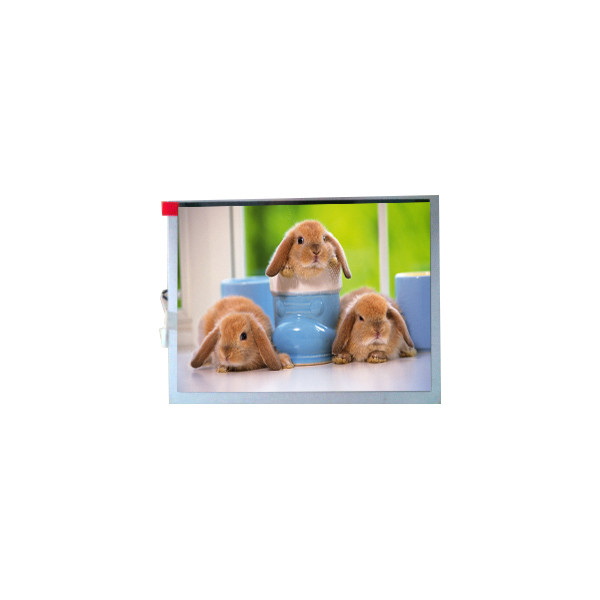

New TM070SDH03 800*600 7.0 inch TFT-LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070SDH03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM070SDH03 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 144PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 141(W)×105.75(H) Mm |
| Used For: | Digital Photo Frame、Portable DVD Player | Touchscreen: | Without |
Product Description
New TM070SDH03 800*600 7.0 inch TFT-LCD Screen Panel
TM070SDH03 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM070SDH03 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 141(W)×105.75(H) mm |
| Bezel Opening | 143.5(W)×108.25(H) mm |
| Outline Dim. | 155.5(H)×118.7(V)×3.7(D) mm |
| Treatment | Antiglare |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50%NTSC |
| Light Source | WLED [3S6P], 20K hours, W/O Driver |
| Weight | TBD |
| Designed For | Digital Photo Frame,Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit), 30 pinsFPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C |
TM070SDH03 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
TM070SDH03 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
TM070SDH03 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
TM070SDH03 LCD Panel Shipping and Package :
TM070SDH03 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of TM070SDH03 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of TM070SDH03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of TM070SDH03 ?
A: we will give you tracking number then you can trace your order from website.
