LQ315D1VG01 32.0 inch 700 cd/m2 LCD Module WLED LCD Screen

All Category

Floor Standing Digital Signage

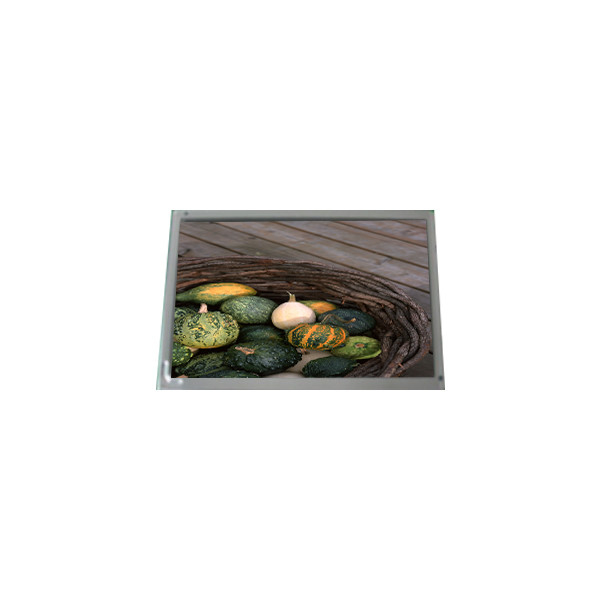

LQ315D1VG01 32.0 inch 700 cd/m2 LCD Module WLED LCD Screen

Brand Name:	Sharp
Model Number:	LQ315D1VG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ315D1VG01

Diagonal Size:

32.0"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 139PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

697.92(W)×392.58(H) Mm

Used For:

Medical Imaging

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ315D1VG01 32.0 inch 700 cd/m2 LCD Module WLED LCD Screen

LQ315D1VG01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ315D1VG01
Diagonal Size	32.0"
Panel Type	Oxide TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 139PPI
Pixel Format	RGB Vertical Stripe
Active Area	697.92(W)×392.58(H) mm
Bezel Opening	703(W)×397.6(H) mm
Outline Dim.	734.8(H)×430(V)×26.5(D)mm
Treatment	Antiglare, Hard coating (3H)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	8 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ASV, Normally Black, Transmissive
Support Color	1.07B 100%Adobe RGB
Light Source	WLED, 30K hours, W/O Driver
Weight	5.80±0.2Kgs
Designed For	Medical Imaging
Frame Rate	60Hz
Touch Panel	Without
Interface Type	V-by-One 8 lane, 51 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 60 °C
LQ315D1VG01 32.0 inch 700 cd/m2 LCD Module WLED LCD Screen

LQ315D1VG01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ315D1VG01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ315D1VG01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ315D1VG01 LCD Panel Shipping and Package :

LQ315D1VG01 32.0 inch 700 cd/m2 LCD Module WLED LCD Screen 0

LQ315D1VG01 LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of LQ315D1VG01 ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel LQ315D1VG01 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
