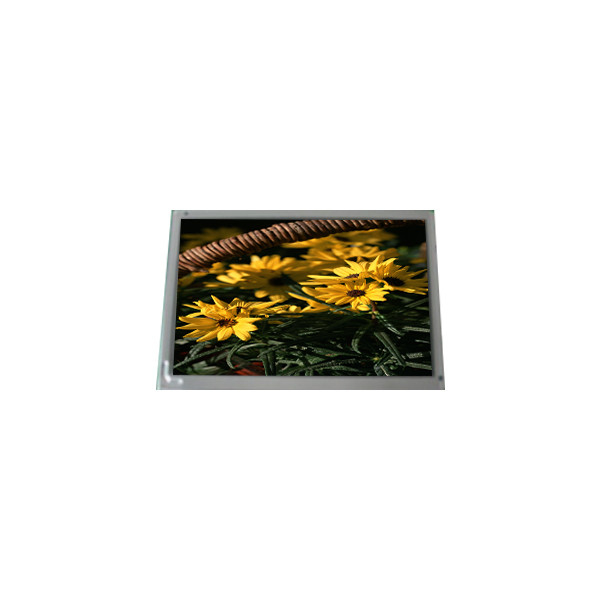

3840*2160 LQ315D1LG93 32.0 inch 800 cd/m2 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ315D1LG93 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ315D1LG93 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 139PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.92(W)×392.58(H) Mm |
| Used For: | Desktop Monitor、Medical Imaging | Touchscreen: | Without |
Product Description
3840*2160 LQ315D1LG93 32.0 inch 800 cd/m2 LCD Display Panel
LQ315D1LG93 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ315D1LG93 |
| Diagonal Size | 32.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 139PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.92(W)×392.58(H) mm |
| Bezel Opening | - |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Support Color | 1.07B sRGB |
| Light Source | WLED, With LED Driver |
| Weight | 6.20±1.00Kgs |
| Designed For | Desktop Monitor,Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (8 ch, 10-bit)Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 60 °C |
| 3840*2160 LQ315D1LG93 32.0 inch 800 cd/m2 LCD Display Panel | |
LQ315D1LG93 LCD Panel Shipping and Package :
LQ315D1LG93 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ315D1LG93 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ315D1LG93 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
