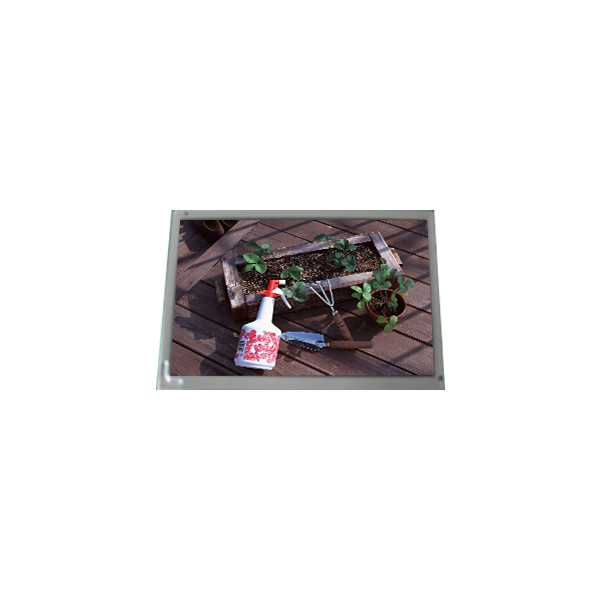

32.0 inch LQ315D1LG9N 3840*2160 LVDS LCD Module Display

All Category

Floor Standing Digital Signage

32.0 inch LQ315D1LG9N 3840*2160 LVDS LCD Module Display

Brand Name:	Sharp
Model Number:	LQ315D1LG9N
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ315D1LG9N

Diagonal Size:

32.0"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 139PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

697.92(W)×392.58(H) Mm

Used For:

Desktop Monitor、Medical Imaging

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

32.0 inch LQ315D1LG9N 3840*2160 LVDS LCD Module Display

LQ315D1LG9N LCD Panel Product details :

Brand	Sharp
Model P/N	LQ315D1LG9N
Diagonal Size	32.0"
Panel Type	Oxide TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 139PPI
Pixel Format	RGB Vertical Stripe
Active Area	697.92(W)×392.58(H) mm
Bezel Opening	703.0(W)×397.6(H) mm
Outline(mm)	733 × 428.6 (H×V×D)
Treatment	Antiglare, Hard coating (3H), Antireflection
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	8 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ASV, Normally Black, Transmissive
Color Depth	1.07B 98%sRGB
Backlight	WLED, 50K hours, With LED Driver
Mass	6.20±1.00Kgs
Used for	Desktop Monitor,Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (8 ch, 10-bit), 122 pinsConnector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 40 °C
32.0 inch LQ315D1LG9N 3840*2160 LVDS LCD Module Display

LQ315D1LG9N LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ315D1LG9N LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ315D1LG9N LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ315D1LG9N LCD Panel Shipping and Package :

32.0 inch LQ315D1LG9N 3840*2160 LVDS LCD Module Display 0

LQ315D1LG9N LCD Panel FAQ :

Q: How can I trace my order of LQ315D1LG9N ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of LQ315D1LG9N ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LQ315D1LG9N ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of LQ315D1LG9N ?

A: Of course!If you make a large order, we will give you a discount.
