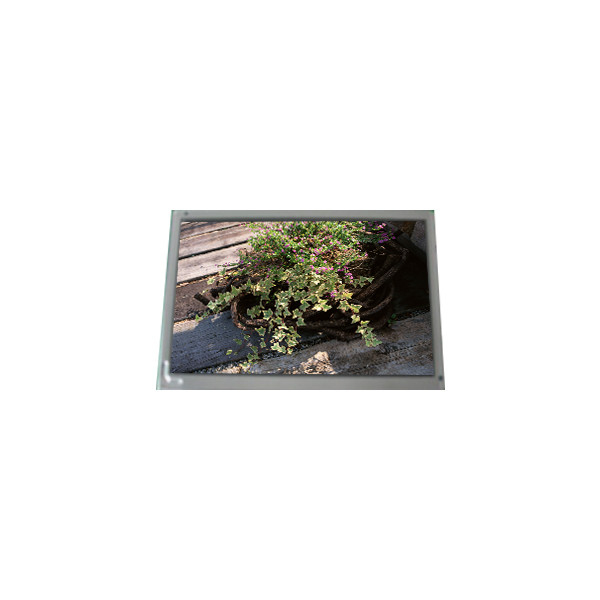

LQ315D1LG9D 32.0 inch WLED LCD Screen Panel FOR Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ315D1LG9D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ315D1LG9D | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 139PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.92(W)×392.58(H) Mm |
| Used For: | Desktop Monitor、Medical Imaging | Touchscreen: | Without |
Product Description
LQ315D1LG9D 32.0 inch WLED LCD Screen Panel FOR Desktop Monitor
LQ315D1LG9D LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ315D1LG9D |
| Diagonal Size | 32.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 139PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.92(W)×392.58(H) mm |
| Bezel Opening | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ASV, Normally Black, Transmissive |
| Color Depth | 1.07B Adobe RGB |
| Backlight | WLED, With LED Driver |
| Mass | - |
| Used for | Desktop Monitor,Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (8 ch, 10-bit)Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 40 °C |
| LQ315D1LG9D 32.0 inch WLED LCD Screen Panel FOR Desktop Monitor | |
LQ315D1LG9D LCD Panel Shipping and Package :
LQ315D1LG9D LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
