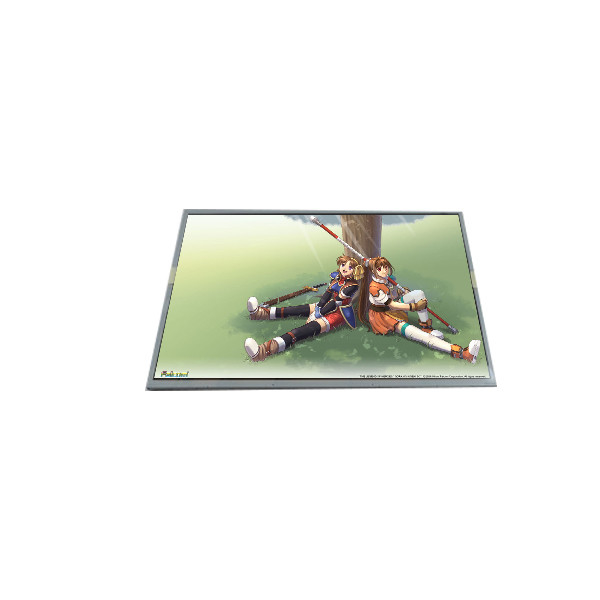

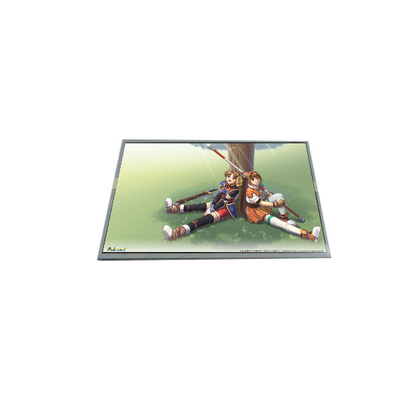

1920*1080 27.0 inch LM270WF1-TLC1 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM270WF1-TLC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM270WF1-TLC1 | Diagonal Size: | 27.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 81PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 597.888(W)×336.312(H) Mm |
| Used For: | Desktop Monitor | Touch Panel: | Without |
Product Description
1920*1080 27.0 inch LM270WF1-TLC1 LCD Display Screen
LM270WF1-TLC1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM270WF1-TLC1 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 597.888(W)×336.312(H) mm |
| Bezel Opening | 602.0(W)×340.4(H) mm |
| Outline Size | 630(W)×368.2(H)×37.7(D) mm |
| Brightness | 400 cd/m² (Typ.) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 16.7M 92%NTSC |
| Frequency | 60Hz |
| Weight | 4.22/4.43Kgs (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 1/4 (Typ.)(Tr/Td), 2 (Typ.)(G to G), 10 (Typ.)(MPRT) |
| Lamp Type | 7 pcs CCFL , 40K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LM270WF1-TLC1 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LM270WF1-TLC1 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LM270WF1-TLC1 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LM270WF1-TLC1 LCD Panel Shipping and Package :
LM270WF1-TLC1 LCD Panel FAQ :
Q: How to make payment of LM270WF1-TLC1 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LM270WF1-TLC1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LM270WF1-TLC1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of LM270WF1-TLC1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Want to Know more details about this product
