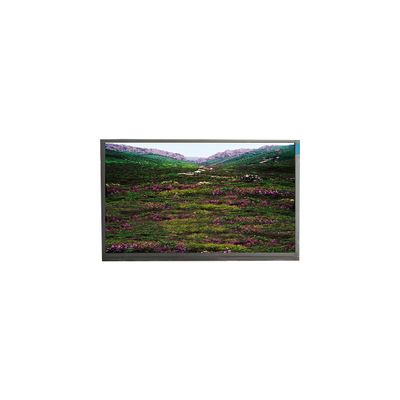

P236MWF1 R0 23.6 inch 1920*1080 LCD Panel LVDS Module
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | P236MWF1 R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P236MWF1 R0 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 93PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 521.28(W)×293.22(H) Mm |
| Used For: | Desktop Monitor | Touch Panel: | Without |
Product Description
P236MWF1 R0 23.6 inch 1920*1080 LCD Panel LVDS Module
P236MWF1 R0 LCD Panel Product details :
| Brand | IVO |
| Model P/N | P236MWF1 R0 |
| Diagonal Size | 23.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 521.28(W)×293.22(H) mm |
| Bezel Opening | - |
| Outline Dim. | 534.48(H)×306.42(V)×1.83(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.70+0.70 mm |
| Transmittance | 5.45% (Typ.)(with Polarizer) |
| Support Color | 16.7M 72%NTSC |
| Light Source | No B/L |
| Weight | 690g (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 8 source COF + 3 gate COG chips |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
P236MWF1 R0 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
P236MWF1 R0 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
P236MWF1 R0 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
P236MWF1 R0 LCD Panel Shipping and Package :
P236MWF1 R0 LCD Panel FAQ :
Q: How to make payment of P236MWF1 R0 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of P236MWF1 R0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods P236MWF1 R0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
