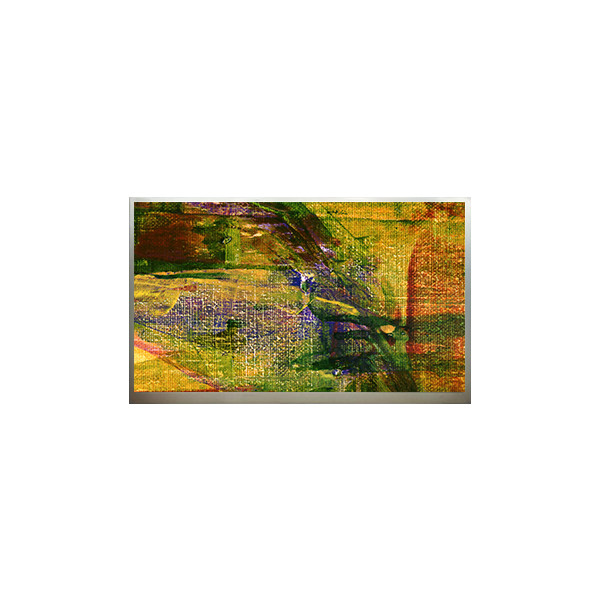

M236H1-L03 23.6 inch 1920*1080 LVDS 60Hz LCD Screen Panel

All Category

Floor Standing Digital Signage

M236H1-L03 23.6 inch 1920*1080 LVDS 60Hz LCD Screen Panel

Brand Name:	CMO
Model Number:	M236H1-L03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M236H1-L03

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 93PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

521.28(W)×293.22(H) Mm

Used For:

Desktop Monitor

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

M236H1-L03 23.6 inch 1920*1080 LVDS 60Hz LCD Screen Panel

M236H1-L03 LCD Panel Product details :

Brand	CMO
Model P/N	M236H1-L03
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Dim.	544.8(H)×320.5(V)×18.95(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.0/2.0 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 71%NTSC
Light Source	CCFL [4 pcs], W/O Driver
Weight	3.05/3.10Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

M236H1-L03 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

M236H1-L03 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

M236H1-L03 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

M236H1-L03 LCD Panel Shipping and Package :

M236H1-L03 23.6 inch 1920*1080 LVDS 60Hz LCD Screen Panel 0

M236H1-L03 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of M236H1-L03 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of M236H1-L03 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of M236H1-L03 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
