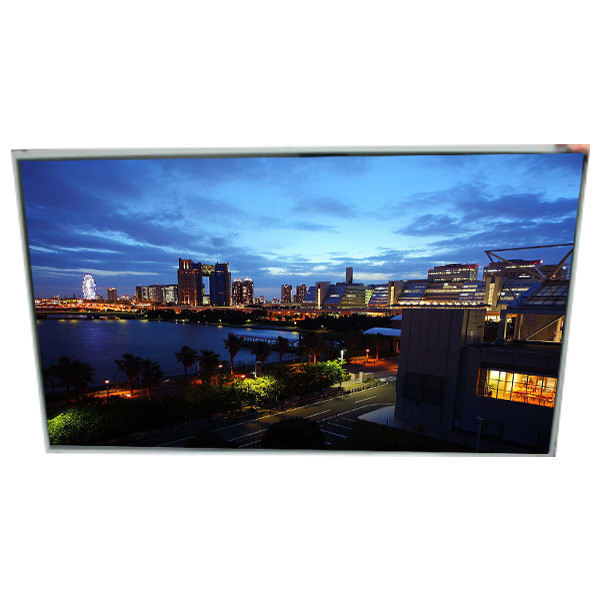

LD720DUT-SCK1 72.0 inch 1920*1080 FHD 60Hz LCD Panel Module

Brand Name:	LG
Model Number:	LD720DUT-SCK1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD720DUT-SCK1

Diagonal Size:

72.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 30PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1595.52(W)×897.48(H) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Light Source:

No B/L

View Direction:

Symmetry

Application:

Digital Signage

Supply Ability:

100000 Unit/Units per Month

Product Description

LD720DUT-SCK1 72.0 inch 1920*1080 FHD 60Hz LCD Panel Module

LD720DUT-SCK1 LCD Panel Product details :

Brand	LG Display
Model P/N	LD720DUT-SCK1
Diagonal Size	72"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 30PPI
Pixel Format	RGB Vertical Stripe
Active Area	1595.52(W)×897.48(H) mm
Bezel Opening	-
Outline Dim.	1631(W)×935(H)×1.95(D) mm
Treatment	Antiglare (Haze 10%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	12 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Plate Thickness	-
Transmittance	4.2% (Typ.)(with Polarizer)
Support Color	16.7M 99%sRGB
Light Source	No B/L
Weight	6.00/6.60Kgs (Typ./Max.)
Designed For	Digital Signage
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 8 source chips
Interface Type	LVDS (2 ch, 10-bit), 63 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LD720DUT-SCK1 72.0 inch 1920*1080 FHD 60Hz LCD Panel Module

LD720DUT-SCK1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LD720DUT-SCK1 LCD Panel Shipping and Package :

LD720DUT-SCK1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LD720DUT-SCK1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LD720DUT-SCK1 LCD Panel FAQ :

Q: Can You declare my order of LD720DUT-SCK1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LD720DUT-SCK1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LD720DUT-SCK1 ?

A: Of course!sample order is welcome !

Q: How to make payment of LD720DUT-SCK1 ?

A: We accept T/T , Paypal , western union .
