LD550EUD-UFA3 55.0 inch 1920*1080 LCD Panel Module For Digital Signage
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LD550EUD-UFA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD550EUD-UFA3 | Diagonal Size: | 55.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 40PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1209.6(W)×680.4(H) Mm |
| Operating Mode: | IPS, Normally Black, Transmissive | Light Source: | WLED, 60K Hours, With LED Driver |
| View Direction: | Symmetry | Application: | Digital Signage |
Product Description

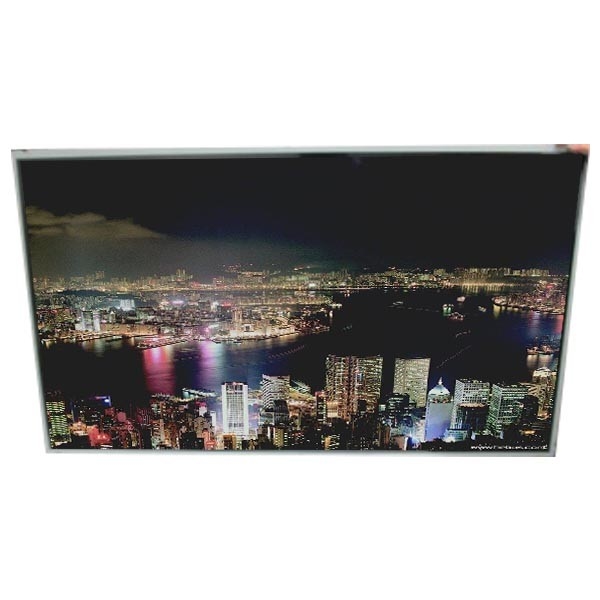

LD550EUD-UFA3 55.0 inch 1920*1080 LCD Panel Module For Digital Signage
LD550EUD-UFA3 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LD550EUD-UFA3 |
| Diagonal Size | 55" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 40PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1209.6(W)×680.4(H) mm |
| Bezel Opening | 1219.4(W)×690.2(H) mm |
| Outline Dim. | 1239.2(H)×710(V)×31.4(D) mm |
| Treatment | Hard coating (3H), Reflection 2.0% (Max.) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 1.07B 72%NTSC |
| Light Source | WLED, 60K hours, With LED Driver |
| Weight | 17.5/18.0Kgs (Typ./Max.) |
| Designed For | Digital Signage |
| Frame Rate | 120Hz+120Hz |
| Touch Panel | Without |
| Interface Type | LVDS (4 ch, 8/10-bit), 92 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LD550EUD-UFA3 55.0 inch 1920*1080 LCD Panel Module For Digital Signage | |
LD550EUD-UFA3 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LD550EUD-UFA3 LCD Panel Shipping and Package :
LD550EUD-UFA3 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LD550EUD-UFA3 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LD550EUD-UFA3 LCD Panel FAQ :
Q: Can You declare my order of LD550EUD-UFA3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LD550EUD-UFA3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LD550EUD-UFA3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LD550EUD-UFA3 ?
A: Of course!sample order is welcome !
