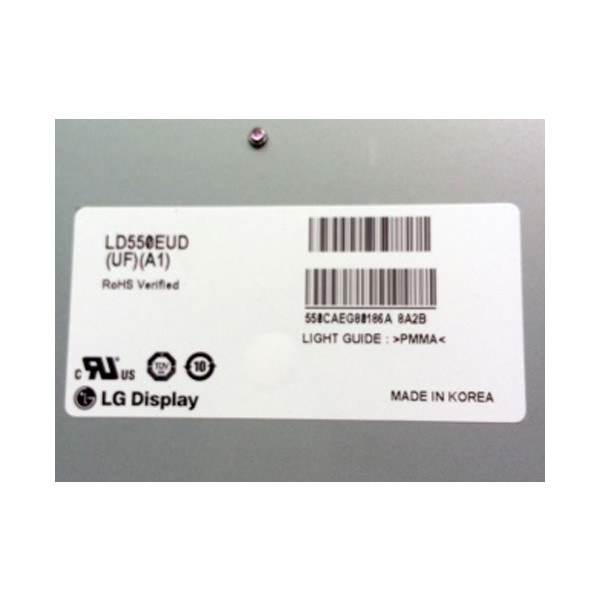

LD550EUD-UFA1 55.0 inch 1920*1080 LCD Panel Module

Brand Name:	LG
Model Number:	LD550EUD-UFA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD550EUD-UFA1

Diagonal Size:

55.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 40PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1209.6(W)×680.4(H) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Light Source:

WLED, 60K Hours, With LED Driver

View Direction:

Symmetry

Application:

Digital Signage

Supply Ability:

100000 Unit/Units per Month

Product Description

LD550EUD-UFA1 55.0 inch 1920*1080 LCD Panel Module

LD550EUD-UFA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LD550EUD-UFA1
Diagonal Size	55"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 40PPI
Pixel Format	RGB Vertical Stripe
Active Area	1209.6(W)×680.4(H) mm
Bezel Opening	1219.4(W)×690.2(H) mm
Outline Size	1239.2(W)×710(H)×23.8(D) mm
Surface	Antiglare (Haze 10%), Hard coating (3H)
Brightness	700 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	12 (Typ.)(G to G)
Display Colors	1.07B 72%NTSC
Lamp Type	WLED, 60K hours, With LED Driver
Frequency	120Hz+120Hz
Touch Screen	Without
Panel Weight	17.5/18.0Kgs (Typ./Max.)
Application	Digital Signage
Signal Interface	LVDS (4 ch, 8/10-bit), 92 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LD550EUD-UFA1 55.0 inch 1920*1080 LCD Panel Module

LD550EUD-UFA1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LD550EUD-UFA1 LCD Panel Shipping and Package :

LD550EUD-UFA1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LD550EUD-UFA1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LD550EUD-UFA1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LD550EUD-UFA1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of LD550EUD-UFA1 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of LD550EUD-UFA1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of LD550EUD-UFA1 ?

A: Of course!sample order is welcome !
