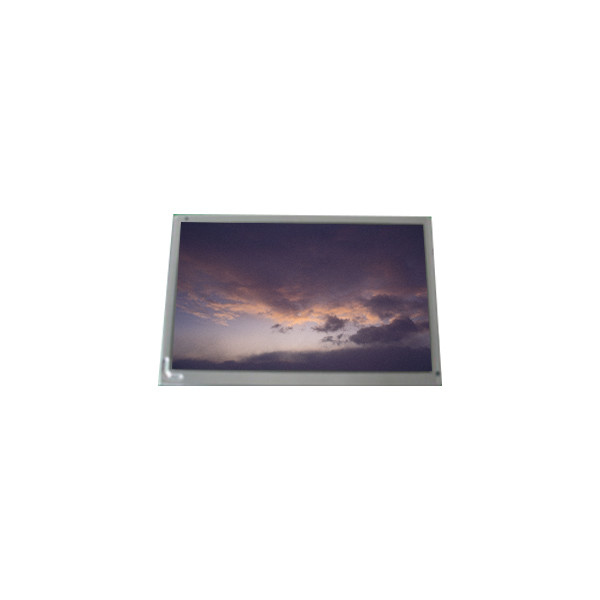

LQ201U1LW11Z 20.1 inch 1600*1200 700 cd/m2 LCD Screen

All Category

Floor Standing Digital Signage

LQ201U1LW11Z 20.1 inch 1600*1200 700 cd/m2 LCD Screen

Brand Name:	Sharp
Model Number:	LQ201U1LW11Z
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ201U1LW11Z

Diagonal Size:

20.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(LCR)×1200, UXGA 99PPI

Pixel Format:

LCR Vertical Stripe

Active Area:

408(W)×306(H) Mm

Designed For:

Medical Imaging

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ201U1LW11Z 20.1 inch 1600*1200 700 cd/m2 LCD Screen

LQ201U1LW11Z LCD Panel Product details :

Brand	Sharp
Model P/N	LQ201U1LW11Z
Diagonal Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(LCR)×1200, UXGA 99PPI
Pixel Format	LCR Vertical Stripe
Active Area	408(W)×306(H) mm
Bezel Opening	413.2(W)×311.2(H) mm
Outline Size	436(W)×335(H)×28(D) mm
Surface	Antiglare, Hard coating (2H)
Brightness	700 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	ASV, Normally Black, Transmissive
Best View on	Symmetry
Response Time	5/20 (Typ.)(Tr/Td)
Display Colors	Grayscale
Lamp Type	6 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	3.80Kgs (Max.)
Application	Medical Imaging
Signal Interface	LVDS (2 ch, 8-bit), 40 pinsConnector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
LQ201U1LW11Z 20.1 inch 1600*1200 700 cd/m2 LCD Screen

LQ201U1LW11Z LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ201U1LW11Z LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ201U1LW11Z LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ201U1LW11Z LCD Panel Shipping and Package :

LQ201U1LW11Z 20.1 inch 1600*1200 700 cd/m2 LCD Screen 0

LQ201U1LW11Z LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LQ201U1LW11Z ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LQ201U1LW11Z to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of LQ201U1LW11Z via credit card ?

A: Yes!you can use your credit card through your Paypal account.
