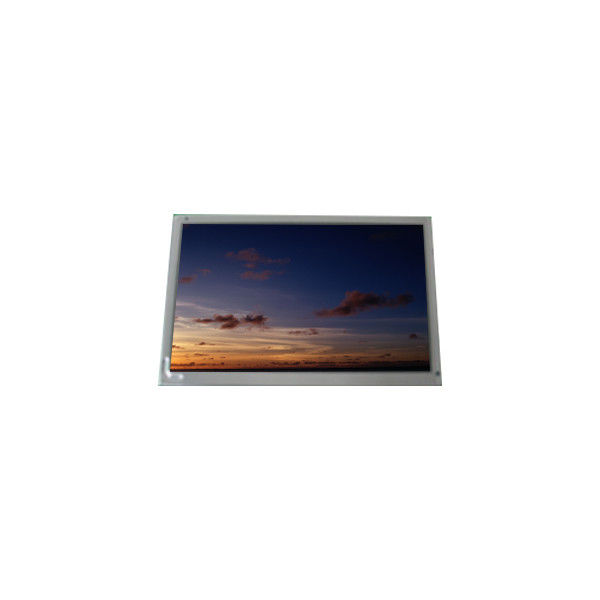

LQ201T1LZ01 20.1 inch 1366*768 60Hz LCD Display Screen

Brand Name:	Sharp
Model Number:	LQ201T1LZ01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ201T1LZ01

Diagonal Size:

20.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 78PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

443.609(W)×249.408(H) Mm

Designed For:

TV Sets

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ201T1LZ01 20.1 inch 1366*768 60Hz LCD Display Screen

LQ201T1LZ01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ201T1LZ01
Diagonal Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 78PPI
Pixel Format	RGB Vertical Stripe
Active Area	444.633(W)×249.984(H) mm
Bezel Opening	450.7(W)×256.0(H) mm
Outline Dim.	473.3(H)×276.7(V)×44.75(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	8/8 (Typ.)(Tr/Td)
Viewing Angle	88/88/88/88 (Typ.)(CR≥20)
Operating Mode	ASV, Normally Black, Transmissive
Support Color	16.2M 72%NTSC
Light Source	CCFL [5 pcs], 60K hours, With Inverter
Weight	2.40Kgs (Max.)
Designed For	TV Sets
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LQ201T1LZ01 20.1 inch 1366*768 60Hz LCD Display Screen

LQ201T1LZ01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ201T1LZ01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ201T1LZ01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ201T1LZ01 LCD Panel Shipping and Package :

LQ201T1LZ01 20.1 inch 1366*768 60Hz LCD Display Screen 0

LQ201T1LZ01 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of LQ201T1LZ01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LQ201T1LZ01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LQ201T1LZ01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
