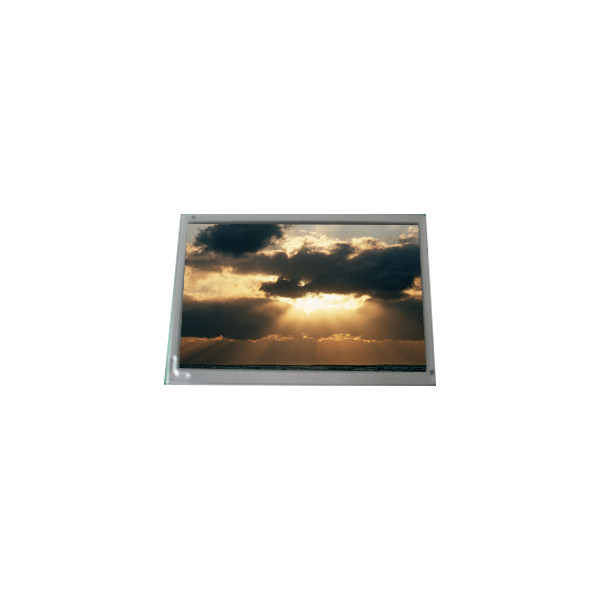

19.7 inch 640*480 LQ197VC1L17 LCD Screen with Industrial

Brand Name:	Sharp
Model Number:	LQ197VC1L17
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ197VC1L17

Diagonal Size:

19.7"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 40PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

401.28(W)×298.8(H) Mm

Designed For:

Industrial

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

19.7 inch 640*480 LQ197VC1L17 LCD Screen with Industrial

LQ197VC1L17 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ197VC1L17
Diagonal Size	19.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 40PPI
Pixel Format	RGB Vertical Stripe
Active Area	401.28(W)×298.8(H) mm
Bezel Opening	406.3(W)×303.8(H) mm
Outline Size	432.6(W)×338.5(H)×36.5(D) mm
Surface	Antiglare (Haze 23%), Hard coating (2H)
Brightness	450 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	60/60/45/55 (Typ.)(CR≥10)
Display Mode	ASV, Normally Black, Transmissive
Best View on	-
Response Time	16 (Typ.)(Tr+Td)
Display Colors	262K 47%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.30±0.15Kgs
Application	Industrial
Signal Interface	LVDS (1 ch, 6-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C
19.7 inch 640*480 LQ197VC1L17 LCD Screen with Industrial

LQ197VC1L17 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ197VC1L17 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ197VC1L17 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ197VC1L17 LCD Panel Shipping and Package :

19.7 inch 640*480 LQ197VC1L17 LCD Screen with Industrial 0

LQ197VC1L17 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LQ197VC1L17 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LQ197VC1L17 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of LQ197VC1L17 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
