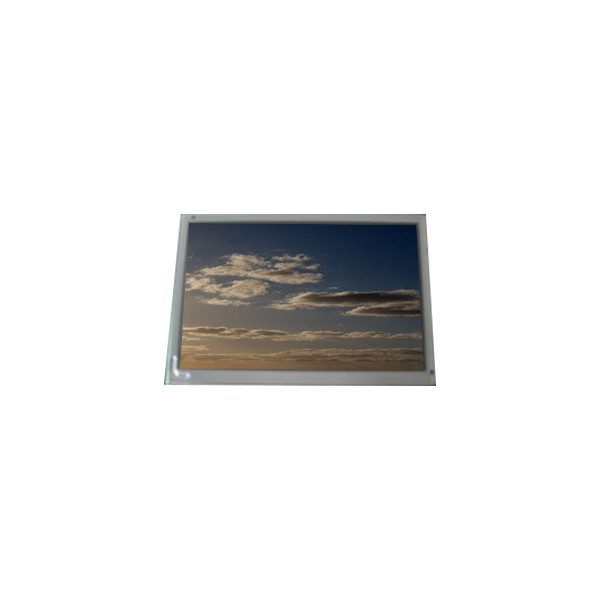

640*480 LQ197V3FZ20S 19.7 inch 500:1 LCD Screen Display

Brand Name:	Sharp
Model Number:	LQ197V3FZ20S
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ197V3FZ20S

Diagonal Size:

19.7"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 40PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

401.28(W)×298.8(H) Mm

Designed For:

TV Sets

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 LQ197V3FZ20S 19.7 inch 500:1 LCD Screen Display

LQ197V3FZ20S LCD Panel Product details :

Brand	Sharp
Model P/N	LQ197V3FZ20S
Diagonal Size	19.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 40PPI
Pixel Format	RGB Vertical Stripe
Active Area	401.28(W)×298.8(H) mm
Bezel Opening	406.9(W)×303.8(H) mm
Outline Size	462.6(W)×338.45(H) mm
Brightness	-
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M
Frequency	-
Weight	1.31±0.01Kgs
Surface	Antiglare (Haze 23%), Hard coating (2H), Reflection 2.0% (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	Normally Black, Transmissive
Response Time	10/14 (Typ.)(Tr/Td)
Lamp Type	No B/L
Touch Screen	Without
Application	TV Sets
Input Voltage	3.3/5.4/25/-10.5/1.3V (Typ.)(VSH/VLS/VGH/VGL/VCOM)
Environment	Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -25 ~ 70 °C
640*480 LQ197V3FZ20S 19.7 inch 500:1 LCD Screen Display

LQ197V3FZ20S LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ197V3FZ20S LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ197V3FZ20S LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ197V3FZ20S LCD Panel Shipping and Package :

640*480 LQ197V3FZ20S 19.7 inch 500:1 LCD Screen Display 0

LQ197V3FZ20S LCD Panel FAQ :

Q: Can You declare my order of LQ197V3FZ20S to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LQ197V3FZ20S ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LQ197V3FZ20S ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LQ197V3FZ20S via credit card ?

A: Yes!you can use your credit card through your Paypal account.
