LCD Screen Display Panel

Original LQ197V3DZ89 19.7 inch LCD Display Monitor

All Category

Floor Standing Digital Signage

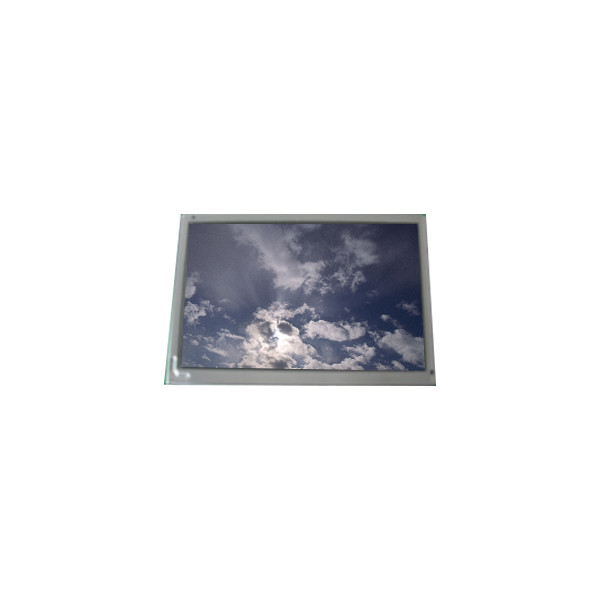

Original LQ197V3DZ89 19.7 inch LCD Display Monitor

Brand Name:	Sharp
Model Number:	LQ197V3DZ89
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ197V3DZ89

Diagonal Size:

19.7"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 40PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

401.28(W)×298.8(H) Mm

Designed For:

TV Sets

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

Original LQ197V3DZ89 19.7 inch LCD Display Monitor

LQ197V3DZ89 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ197V3DZ89
Diagonal Size	19.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 40PPI
Pixel Format	RGB Vertical Stripe
Active Area	401.28(W)×298.8(H) mm
Bezel Opening	406.3(W)×303.8(H) mm
Outline Size	462.6(W)×338.5(H)×5.2(D) mm
Surface	Antiglare (Haze 23%), Hard coating (2H), Antireflection
Brightness	450 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	Normally Black, Transmissive
Best View on	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Display Colors	16.2M 74%NTSC
Lamp Type	5 pcsCCFL, 50K hours, With Inverter
Frequency	-
Touch Screen	Without
Panel Weight	2.30±0.15Kgs
Application	TV Sets
Signal Interface	Parallel RGB (1 ch, 8-bit), 50 pinsConnector
Input Voltage	5.0V (Typ.)(VCC)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
Original LQ197V3DZ89 19.7 inch LCD Display Monitor

LQ197V3DZ89 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ197V3DZ89 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ197V3DZ89 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ197V3DZ89 LCD Panel Shipping and Package :

Original LQ197V3DZ89 19.7 inch LCD Display Monitor 0

LQ197V3DZ89 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LQ197V3DZ89 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LQ197V3DZ89?

A: Of course!sample order is welcome !

Q: Can I pay my order of LQ197V3DZ89 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of LQ197V3DZ89 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
