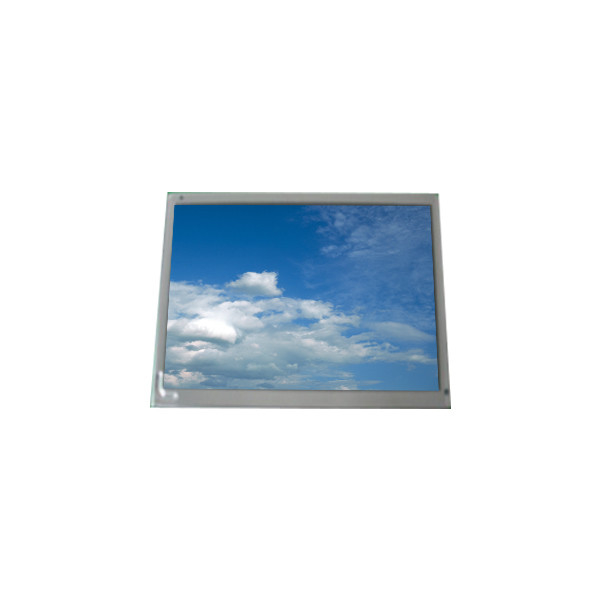

19.6 inch LQ196U1LG01 1600*1200 LCD Screen FOR Desktop Monitor

Brand Name:	Sharp
Model Number:	LQ196U1LG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ196U1LG01

Diagonal Size:

19.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×1200, UXGA 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

398.4(W)×298.8(H) Mm

Designed For:

Desktop Monitor

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

19.6 inch LQ196U1LG01 1600*1200 LCD Screen FOR Desktop Monitor

LQ196U1LG01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ196U1LG01
Diagonal Size	19.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	398.4(W)×298.8(H) mm
Bezel Opening	403.6(W)×304.0(H) mm
Outline Size	452(W)×356(H) mm
Brightness	200 cd/m² (Typ.)
Viewing Angle	70/70/70/40 (Typ.)(CR≥10)
Best View on	-
Display Colors	16.2M
Frequency	-
Weight	3.60Kgs (Max.)
Surface	Antiglare (Haze 28%), Hard coating (2H)
Contrast Ratio	300:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	10/35 (Typ.)(Tr/Td)
Lamp Type	6 pcs CCFL , 50K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 40 pinsConnector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -25 ~ 60 °C
19.6 inch LQ196U1LG01 1600*1200 LCD Screen FOR Desktop Monitor

LQ196U1LG01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ196U1LG01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ196U1LG01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ196U1LG01 LCD Panel Shipping and Package :

19.6 inch LQ196U1LG01 1600*1200 LCD Screen FOR Desktop Monitor 0

LQ196U1LG01 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LQ196U1LG01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LQ196U1LG01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of LQ196U1LG01 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of LQ196U1LG01 ?

A: Of course!sample order is welcome !
