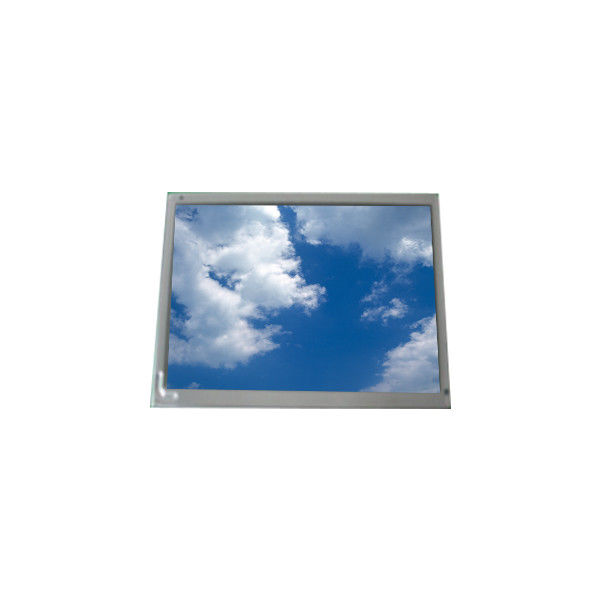

1280*1024 LQ190E1LX51 1000 cd/m2 WLED LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ190E1LX51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ190E1LX51 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 376.32(W)×301.056(H) Mm |
| Designed For: | Industrial、Outdoor High Brightness | Frame Rate: | 60Hz |
Product Description
1280*1024 LQ190E1LX51 1000 cd/m2 WLED LCD Display Screen
LQ190E1LX51 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ190E1LX51 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 382.30(W)×305.10(H) mm |
| Outline Size | 404.2(W)×330(H)×34(D) mm |
| Treatment | Clear, Hard coating |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Response | 12 (Typ.)(Tr+Td), 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ASV, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | WLED, 50K hours, With LED Driver |
| Mass | 2.60Kgs (Max.) |
| Used for | Industrial,Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| 1280*1024 LQ190E1LX51 1000 cd/m2 WLED LCD Display Screen | |
LQ190E1LX51 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LQ190E1LX51 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LQ190E1LX51 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LQ190E1LX51 LCD Panel Shipping and Package :
LQ190E1LX51 LCD Panel FAQ :
Q: Do you accept sample orders of LQ190E1LX51 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LQ190E1LX51 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LQ190E1LX51 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LQ190E1LX51 ?
A: We accept T/T , Paypal , western union .
Want to Know more details about this product
