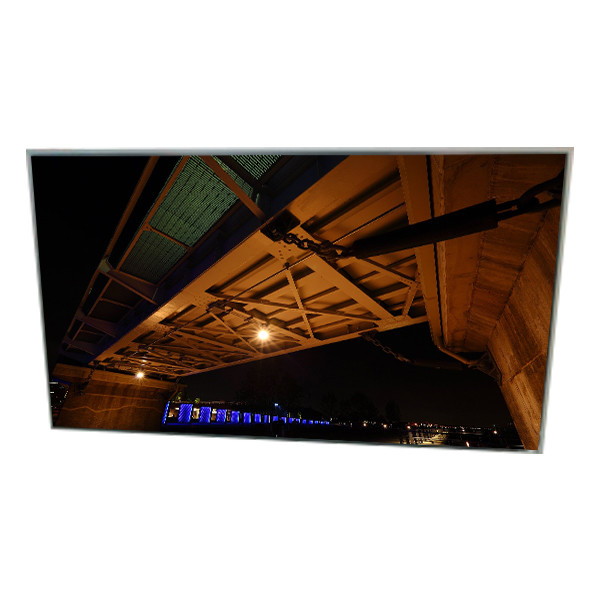

LD470WUB-SCC1 47.0 inch 51pins LCD Display Screen for Digital Signage
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LD470WUB-SCC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD470WUB-SCC1 | Diagonal Size: | 47.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 46PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1039.68(W)×584.82(H) Mm |
| Operating Mode: | S-IPS, Normally Black, Transmissive | Light Source: | CCFL, 50K Hours, With Inverter |
| View Direction: | Symmetry | Application: | Digital Signage、Outdoor High Brightness |
Product Description
LD470WUB-SCC1 47.0 inch 51pins LCD Display Screen for Digital Signage
LD470WUB-SCC1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LD470WUB-SCC1 |
| Diagonal Size | 47" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 46PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1039.68(W)×584.82(H) mm |
| Bezel Opening | 1046.0(W)×591.2(H) mm |
| Outline Size | 1068(W)×613.2(H)×55.7(D) mm |
| Treatment | Antiglare (Haze 10%), Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Response | 9 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | S-IPS, Normally Black, Transmissive |
| Color Depth | 16.7M/1.07B |
| Backlight | CCFL, 50K hours, With Inverter |
| Mass | 14.5/16.5Kgs (Typ./Max.) |
| Used for | Digital Signage,Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LD470WUB-SCC1 47.0 inch 51pins LCD Display Screen for Digital Signage | |
