LCD Screen Display Panel

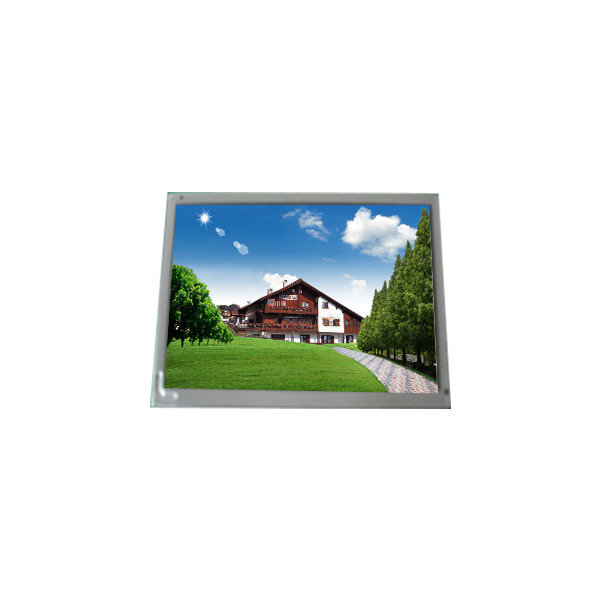

17.0 inch LQ170WX02L LCD Module for Desktop Monitor

All Category

Floor Standing Digital Signage

17.0 inch LQ170WX02L LCD Module for Desktop Monitor

Brand Name:	Sharp
Model Number:	LQ170WX02L
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ170WX02L

Diagonal Size:

17.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 87PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

369.6(W)×221.76(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

17.0 inch LQ170WX02L LCD Module for Desktop Monitor

LQ170WX02L LCD Panel Product details :

Brand	Sharp
Model P/N	LQ170WX02L
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 87PPI
Pixel Format	RGB Vertical Stripe
Active Area	369.6(W)×221.76(H) mm
Bezel Opening	374.6(W)×226.8(H) mm
Outline Dim.	413.8(H)×259(V)×16(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	Normally Black, Transmissive
Support Color	16.7M 69%NTSC
Light Source	WLED, W/O Driver
Weight	1.75Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 20 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 70 °C; Storage Temperature: -20 ~ 70 °C; Vibration Level: 2.0G (19.6 m/s²)
17.0 inch LQ170WX02L LCD Module for Desktop Monitor

LQ170WX02L LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ170WX02L LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ170WX02L LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ170WX02L LCD Panel Shipping and Package :

17.0 inch LQ170WX02L LCD Module for Desktop Monitor 0

LQ170WX02L LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of LQ170WX02L ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of LQ170WX02L via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of LQ170WX02L to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods LQ170WX02L ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
