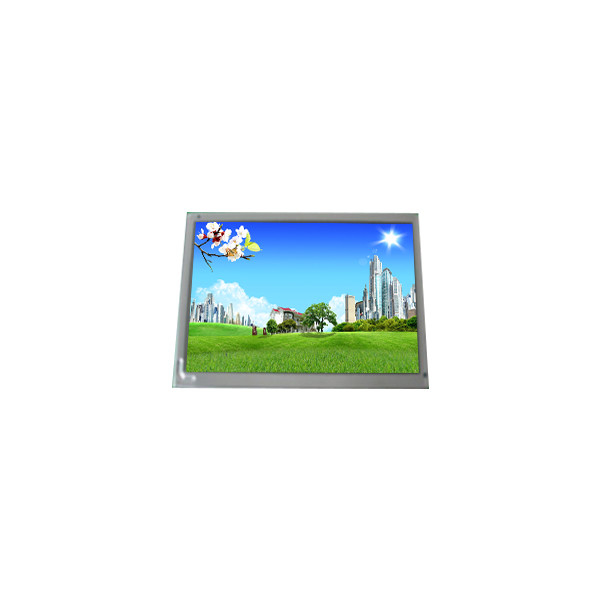

17.0 inch LQ170M1LW2AB 1920*1200 LCD Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ170M1LW2AB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ170M1LW2AB | Diagonal Size: | 17.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 365.76(W)×228.6(H) Mm |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
17.0 inch LQ170M1LW2AB 1920*1200 LCD Screen for Laptop
LQ170M1LW2AB LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ170M1LW2AB |
| Diagonal Size | 17.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 365.76(W)×228.6(H) mm |
| Bezel Opening | 371.8(W)×232.0(H) mm |
| Outline Dim. | 382.2(H)×266.8(V)×7(D)mm |
| Treatment | Antiglare, Hard coating (5H), Antireflection |
| Luminance | 230 cd/m² (Typ.) |
| Contrast Ratio | 550:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 49%NTSC |
| Light Source | CCFL [1 pcs], 12K hours, With Inverter |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 6-bit), 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| 17.0 inch LQ170M1LW2AB 1920*1200 LCD Screen for Laptop | |
LQ170M1LW2AB LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LQ170M1LW2AB LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LQ170M1LW2AB LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LQ170M1LW2AB LCD Panel Shipping and Package :
LQ170M1LW2AB LCD Panel FAQ :
Q: Can I pay my order of LQ170M1LW2AB via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LQ170M1LW2AB ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LQ170M1LW2AB to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
