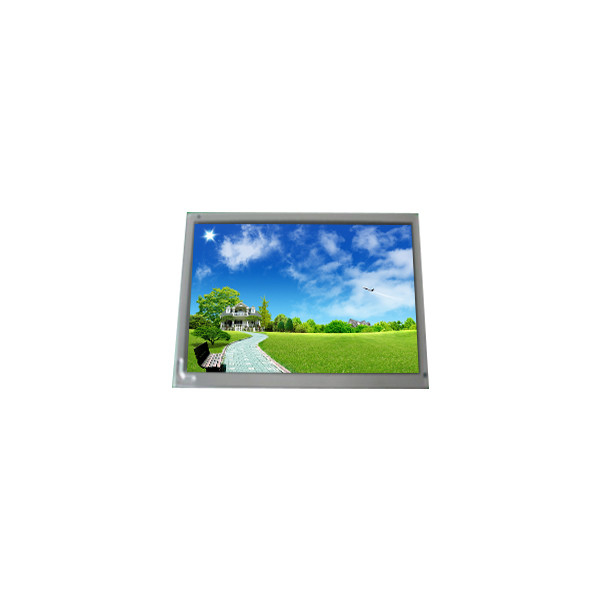

Original LQ170M1LA2E 17.0 inch LVDS LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ170M1LA2E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ170M1LA2E | Diagonal Size: | 17.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 365.76(W)×228.6(H) Mm |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
Original LQ170M1LA2E 17.0 inch LVDS LCD Screen Module
LQ170M1LA2E LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ170M1LA2E |
| Diagonal Size | 17.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 365.76(W)×228.6(H) mm |
| Bezel Opening | - |
| Viewing Angle | - |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | - |
| Display Colors | 262K |
| Lamp Type | 1 pcsCCFL, With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 45 °C ;Storage Temp.: -25 ~ 60 °C |
| Original LQ170M1LA2E 17.0 inch LVDS LCD Screen Module | |
LQ170M1LA2E LCD Panel Shipping and Package :
LQ170M1LA2E LCD Panel FAQ :
Q: How to order lcd panel LQ170M1LA2E ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ170M1LA2E ?
A: NEW Product warranty is 90 days.
