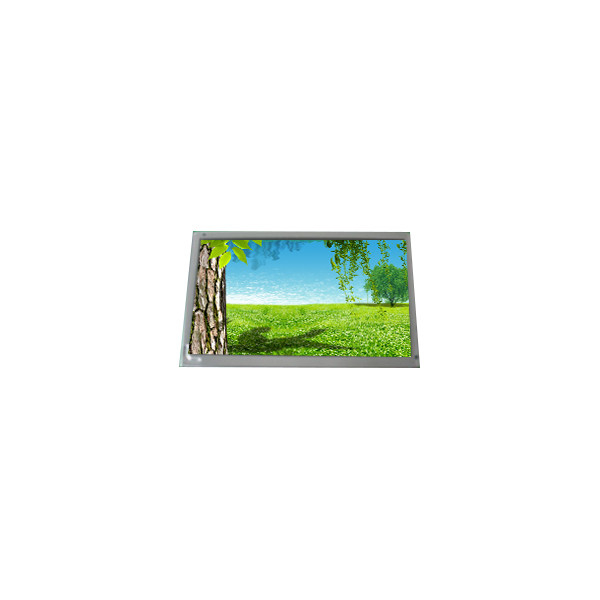

Original 1920*1200 LQ170M1LA2AB 17.0 inch TFT-LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ170M1LA2AB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ170M1LA2AB | Diagonal Size: | 17.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 365.76(W)×228.6(H) Mm |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
Original 1920*1200 LQ170M1LA2AB 17.0 inch TFT-LCD Panel
LQ170M1LA2AB LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ170M1LA2AB |
| Diagonal Size | 17.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 365.76(W)×228.6(H) mm |
| Bezel Opening | - |
| Viewing Angle | - |
| Good View at | - |
| Color Depth | |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Refresh Rate | 60Hz |
| Work Mode | TN, Normally White, Transmissive |
| Response | - |
| Backlight | CCFL |
| Used for | Laptop |
| Touchscreen | - |
| Original 1920*1200 LQ170M1LA2AB 17.0 inch TFT-LCD Panel | |
LQ170M1LA2AB LCD Panel Shipping and Package :
LQ170M1LA2AB LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ170M1LA2AB ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ170M1LA2AB ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
