products details

Home > Products >

LCD Screen Display Panel

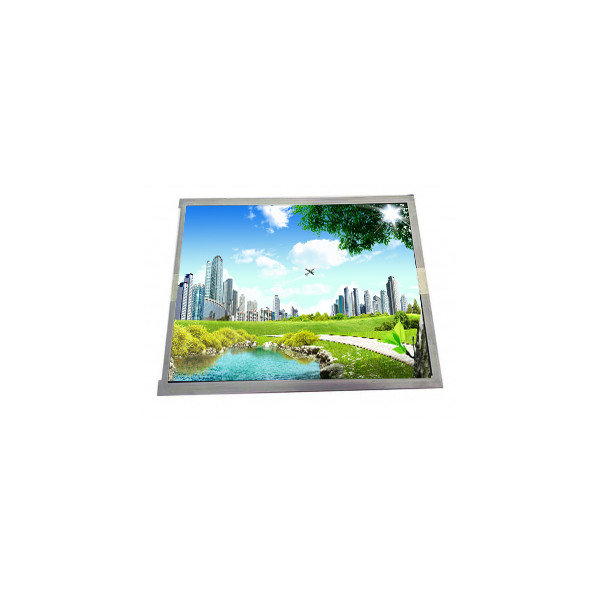

LQ170E1FG21F 17.0 inch 1280*1024 LCD Screen Module

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

LQ170E1FG21F 17.0 inch 1280*1024 LCD Screen Module

Brand Name:	Sharp
Model Number:	LQ170E1FG21F
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ170E1FG21F

Diagonal Size:

17.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1280(RGB)×1024, SXGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

337.92(W)×270.336(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ170E1FG21F 17.0 inch 1280*1024 LCD Screen Module

LQ170E1FG21F LCD Panel Product details :

Brand	Sharp
Model P/N	LQ170E1FG21F
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1280(RGB)×1024, SXGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	-
Outline Dim.	350.2(W)×289.2(H)×1.89(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	450:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	16 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.70+0.70 mm
Transmittance	6.0% (Typ.)(with Polarizer)
Support Color	16.7M 70%NTSC
Light Source	No B/L
Weight	463g (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 8 source + 4 gate chips
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
LQ170E1FG21F 17.0 inch 1280*1024 LCD Screen Module

LQ170E1FG21F LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ170E1FG21F LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ170E1FG21F LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ170E1FG21F LCD Panel Shipping and Package :

LQ170E1FG21F 17.0 inch 1280*1024 LCD Screen Module 0

LQ170E1FG21F LCD Panel FAQ :

Q: Can You declare my order of LQ170E1FG21F to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LQ170E1FG21F ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LQ170E1FG21F ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LQ170E1FG21F via credit card ?

A: Yes!you can use your credit card through your Paypal account.
