27.5 inch HSD280MUW4-B00 LCD Screen Module for HannStar

Brand Name:	HannStar
Model Number:	HSD280MUW4-B00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD280MUW4-B00

Diagonal Size:

27.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 82PPI

Active Area:

593.28(W)×370.8(H) Mm

Treatment:

Antiglare, Hard Coating (3H)

Contrast Ratio:

800 : 1 (Typ.) (TM)

Response Time:

5 (Typ.)(Tr+Td) Ms

Designed For:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

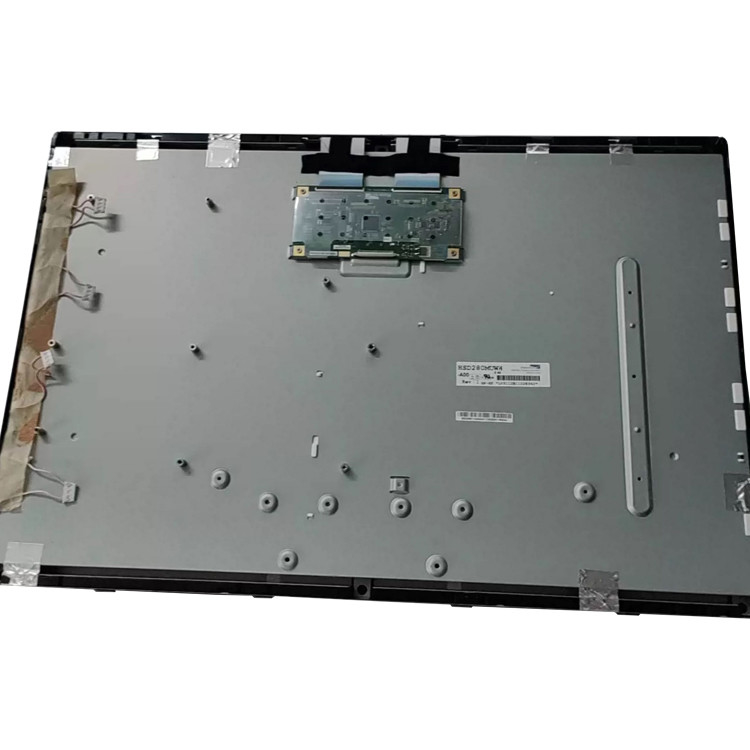

27.5 inch HSD280MUW4-B00 LCD Screen Module for HannStar

HSD280MUW4-B00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD280MUW4-B00
Diagonal Size	27.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	593.28(W)×370.8(H) mm
Bezel Opening	598.3(W)×375.8(H) mm
Outline(mm)	629 × 407.1× 17.8 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Response	5 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 68%NTSC
Backlight	WLED, 30K hours, No Driver
Mass	3.20±0.20Kgs
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
27.5 inch HSD280MUW4-B00 LCD Screen Module for BOE

HSD280MUW4-B00 LCD Screen Regarding us :

- We with 15 years of experience serving over 10,000 clients and 100 countries,provide professional response and service to our clients.

- We offering all kinds of lcd panel and touch screen, agent of several LCD brands: Kyocera, KOE, Nanya. We always have Sharp, NEC, Hitachi, AUO, Kyocera, KOE stocks, can be ship in one day.

- With good quality and pretty competitive price.If you have any demand, please contact us at any time, and we will provide you with the best products and services, thank you!

HSD280MUW4-B00 LCD Screen Guarantee :

1. Strict Testing Before Shipping

To ensure the highest quality and performance, all HSD280MUW4-B00 LCD screens undergo rigorous testing before they are shipped to you. This strict quality control process helps to ensure that you receive a product that meets our high standards.

2. 90-Day Warranty

We offer a 90-day warranty on the HSD280MUW4-B00 LCD screen. This warranty covers any defects or issues that may arise under normal use conditions within this period. If you encounter any problems with your screen during the warranty period, please contact us for assistance and we will work with you to resolve the issue.

HSD280MUW4-B00 LCD Screen - Kindly Reminder :

1. Verify Brand and Model

Before making your purchase, please ensure that the brand and model of the screen match your requirements. Verifying this information beforehand will help you avoid any unnecessary trouble or inconvenience.

2. Bulk Orders

If you need to order a larger quantity of HSD280MUW4-B00 LCD screens, please contact us directly. We are more than happy to assist you with arranging bulk orders and ensuring that you receive the amount you need.

3. Accurate Address Information

Please double-check that your shipping address is correct when placing your order. Including your full name is highly recommended to ensure successful delivery. We cannot be held responsible for any issues arising from incorrect or undeliverable addresses. Providing accurate address details helps us to ensure that your purchase reaches you without any delays or complications.

HSD280MUW4-B00 LCD Panel Shipping and Package :

27.5 inch HSD280MUW4-B00 LCD Screen Module for HannStar 0

HSD280MUW4-B00 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of HSD280MUW4-B00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of HSD280MUW4-B00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of HSD280MUW4-B00 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of HSD280MUW4-B00 ?

A: We accept T/T , Paypal , western union .
