LCD Screen Display Panel

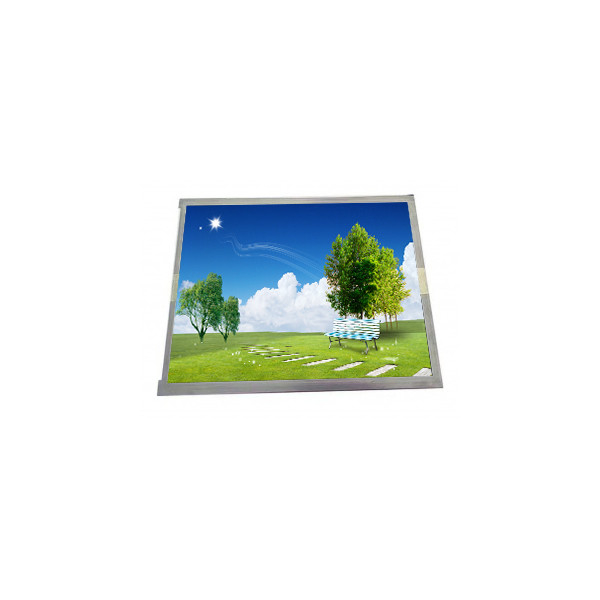

1280*1024 16.0 inch LQ160E1LZ30 LCD Screen for Desktop Monitor

All Category

Floor Standing Digital Signage

1280*1024 16.0 inch LQ160E1LZ30 LCD Screen for Desktop Monitor

Brand Name:	Sharp
Model Number:	LQ160E1LZ30
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ160E1LZ30

Diagonal Size:

16.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

317.4(W)×253.9(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

1280*1024 16.0 inch LQ160E1LZ30 LCD Screen for Desktop Monitor

LQ160E1LZ30 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ160E1LZ30
Diagonal Size	16.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	317.4(W)×253.9(H) mm
Bezel Opening	321.0(W)×257.6(H) mm
Outline Dim.	341(H)×281(V)×20.5(D)mm
Treatment	Antiglare, Hard coating (2H), Reflection 1.7% (Max.)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	5/20 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ASV, Normally Black, Transmissive
Support Color	16.7M
Light Source	CCFL [4 pcs], 50K hours, W/O Driver
Weight	1.62±0.07Kgs
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
1280*1024 16.0 inch LQ160E1LZ30 LCD Screen for Desktop Monitor

LQ160E1LZ30 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ160E1LZ30 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ160E1LZ30 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ160E1LZ30 LCD Panel Shipping and Package :

1280*1024 16.0 inch LQ160E1LZ30 LCD Screen for Desktop Monitor 0

LQ160E1LZ30 LCD Panel FAQ :

Q: How long will I receive my goods LQ160E1LZ30 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of LQ160E1LZ30 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of LQ160E1LZ30 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of LQ160E1LZ30 ?

A: Of course!If you make a large order, we will give you a discount.
