LCD Laptop Screen

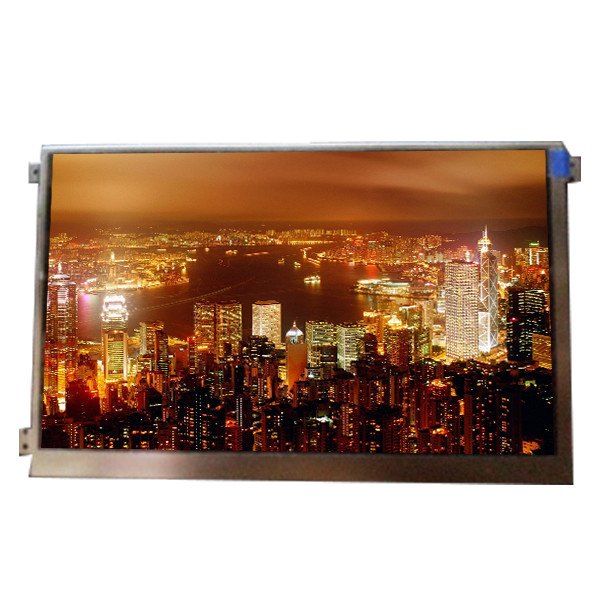

LD116WH1-SPN1 11.6 inch 1366*768 Laptop LCD Display with thin screen

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

LD116WH1-SPN1 11.6 inch 1366*768 Laptop LCD Display with thin screen

Brand Name:	LG
Model Number:	LD116WH1-SPN1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD116WH1-SPN1

Diagonal Size:

11.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 135PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

256.125(W)×144(H) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Light Source:

WLED, 15K Hours , With LED Driver

View Direction:

Symmetry

Designed For:

Laptop、Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

LD116WH1-SPN1 11.6 inch 1366*768 Laptop LCD Display with thin screen

LD116WH1-SPN1 LCD Panel Product details :

Brand	LG Display
Model P/N	LD116WH1-SPN1
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Dim.	270(W)×159(H)×4.5(D) mm
Luminance	400 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	262K 50% NTSC
Form Style	Slim (PCBA Bent, T≤3.0mm)
Frame Rate	60Hz
Treatment	Glare (Haze 0%)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	IPS, Normally Black, Transmissive
Light Source	WLED, 15K hours , With LED Driver
Designed For	Laptop,Pad & Tablet
Touch Panel	Without
Interface Type	eDP (1 Lane), HBR1 (2.7G/lane)30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LD116WH1-SPN1 11.6 inch 1366*768 Laptop LCD Display with thin screen

LD116WH1-SPN1 LCD Panel Special Instructions for International Buyers :

For Buyers in Brazil

If you are shipping the goods to Brazil using DHL, FEDEX, or EMS, please provide us with your CNPJ or CPF number. This information is required for customs clearance.

For Buyers in Russia

For shipments to Russia, we can only ship via EMS or ePacket. Please provide the full name of the receiver to ensure accurate delivery.

Duty and Custom Fees

Import duties or custom fees are the responsibility of the buyer and are determined by the buyer's country. If you need us to declare a lower value for customs purposes, please inform us promptly.

For Buyers in Remote Areas

If you are located in a remote area and choose to ship via FEDEX or DHL, an additional fee of USD 35.00 will be applied. We appreciate your understanding regarding this extra cost.

LD116WH1-SPN1 LCD Panel Shipping and Package :

LD116WH1-SPN1 11.6 inch 1366*768 Laptop LCD Display with thin screen 0

LD116WH1-SPN1 LCD Panel Shipment Guidelines :

1. Confirm the Model

Before completing your purchase, please double-check that the model you need is exactly the LD116WH1-SPN1 We will ship the product based on the model specified in your order. If there are any discrepancies or you need to make changes, please contact us immediately.

2. Verify the Shipping Address

Ensure that the shipping address provided in your order is accurate and complete. We will deliver your order to the address listed in the order details. If you need the shipment to be sent to a different address, please email us the correct address as soon as you have completed your payment. Prompt notification will help us to update the shipping details accordingly.

3. Shipping Timeline

We strive to process and ship all orders promptly. Shipments will be dispatched within 3 business days after we have received your payment. This timeline ensures that we have sufficient time to prepare your order for shipping while maintaining our quality standards.

4. Quality Control and Packaging

Each LCD panel undergoes rigorous testing before it is shipped. This thorough testing process ensures that the panel meets our high standards of quality and functionality. Additionally, we take great care in packaging the LCD panels to prevent any damage during transit. Our secure and robust packaging methods aim to deliver the product to you in perfect condition.

LD116WH1-SPN1 LCD Panel Warranty Information :

Warranty Period

All LD116WH1-SPN1 LCD panels come with a 60-day warranty from the date of delivery. This warranty covers any defects or issues that may arise with the product during this period.

Reporting Issues

If you discover that the LCD panel is not working correctly upon receipt, please notify us within 7 days. This initial period is crucial for us to address any immediate concerns and provide timely assistance. Notifications received after 7 days may not be eligible for warranty claims, as we reserve the right to refuse any requests made beyond this period.

Assistance and Problem Resolution

Once you inform us of an issue within the specified 7-day window, our team will work with you to resolve the problem as quickly as possible. We aim to provide effective solutions and support to ensure your satisfaction.

Return Merchandise Authorization (RMA)

If the issue cannot be resolved through our support and communication, we will accept a Return Merchandise Authorization (RMA) request. This process allows you to return the defective LCD panel for repair, replacement, or refund as deemed appropriate.

LD116WH1-SPN1 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional

Q: How to order LG Display LCD LD116WH1-SPN1 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the LD116WH1-SPN1 before shipping ?

A: Of course , our lcd panel LD116WH1-SPN1 was Strictly tested before shipping.

Q: What happen if the lcd pane LD116WH1-SPN1 received can't work ?

A: LG Display LD116WH1-SPN1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
