LCD Laptop Screen

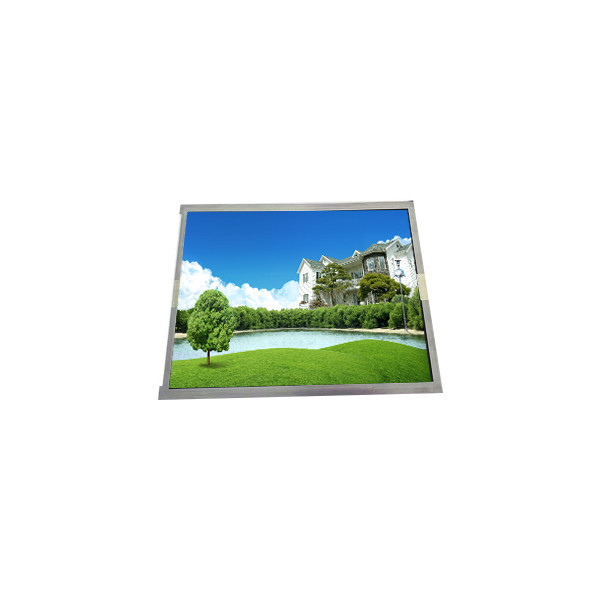

LQ154K1LA1F 15.4 inch 1280*800 LCD Panel for Laptop

All Category

Floor Standing Digital Signage

LQ154K1LA1F 15.4 inch 1280*800 LCD Panel for Laptop

Brand Name:	Sharp
Model Number:	LQ154K1LA1F
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ154K1LA1F

Diagonal Size:

15.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×800, WXGA 98PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

331.2(W)×207(H) Mm

Refresh Rate:

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ154K1LA1F 15.4 inch 1280*800 LCD Panel for Laptop

LQ154K1LA1F LCD Panel Product details :

Brand	Sharp
Model P/N	LQ154K1LA1F
Diagonal Size	15.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 98PPI
Pixel Format	RGB Vertical Stripe
Active Area	331.2(W)×207(H) mm
Bezel Opening	336.2(W)×211.9(H) mm
Outline Size	344(W)×222(H)×6.5(D) mm
Surface	Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness	290 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	15 (Typ.)(Tr+Td)
Display Colors	262K
Lamp Type	1 pcsCCFL, 12K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Application	Laptop
Signal Interface	LVDS (1 ch, 6-bit), 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
LQ154K1LA1F 15.4 inch 1280*800 LCD Panel for Laptop

LQ154K1LA1F LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

LQ154K1LA1F LCD Panel Shipping and Package :

LQ154K1LA1F 15.4 inch 1280*800 LCD Panel for Laptop 0

LQ154K1LA1F LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

LQ154K1LA1F LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

LQ154K1LA1F LCD Panel FAQ :

Q: How long will I receive my goods LQ154K1LA1F ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LQ154K1LA1F ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LQ154K1LA1F via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of LQ154K1LA1F to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
