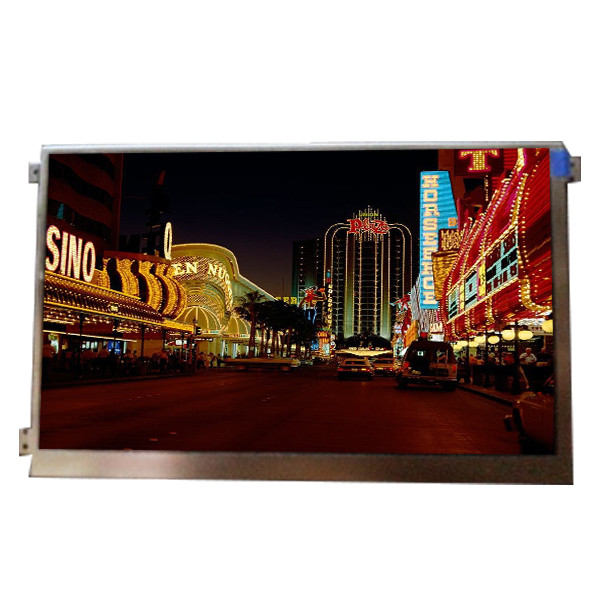

LD101WH2-SL02 10.1 inch LVDS 40pins 1366*768 LCD Display Screen

All Category

Floor Standing Digital Signage

LD101WH2-SL02 10.1 inch LVDS 40pins 1366*768 LCD Display Screen

Brand Name:	LG
Model Number:	LD101WH2-SL02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD101WH2-SL02

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 155PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.52(W)×125.11(H) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Light Source:

6S6PWLED, 12K Hours, Without Driver

View Direction:

Symmetry

Designed For:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

LD101WH2-SL02 10.1 inch LVDS 40pins 1366*768 LCD Display Screen

LD101WH2-SL02 LCD Panel Product details :

Brand	LG Display
Model P/N	LD101WH2-SL02
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.52(W)×125.11(H) mm
Bezel Opening	-
Outline Size	233.8(W)×139(H)×4.35(D) mm
Surface	-
Brightness	380 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 49%NTSC
Lamp Type	6S6PWLED, 12K hours, Without Driver
Frequency	60Hz
Touch Screen	-
Panel Weight	135g (Max.)
Application	Pad & Tablet
Signal Interface	LVDS (1 ch, 8-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LD101WH2-SL02 10.1 inch LVDS 40pins 1366*768 LCD Display Screen

LD101WH2-SL02 LCD Panel Special Instructions for International Buyers :

For Buyers in Brazil

If you are shipping the goods to Brazil using DHL, FEDEX, or EMS, please provide us with your CNPJ or CPF number. This information is required for customs clearance.

For Buyers in Russia

For shipments to Russia, we can only ship via EMS or ePacket. Please provide the full name of the receiver to ensure accurate delivery.

Duty and Custom Fees

Import duties or custom fees are the responsibility of the buyer and are determined by the buyer's country. If you need us to declare a lower value for customs purposes, please inform us promptly.

For Buyers in Remote Areas

If you are located in a remote area and choose to ship via FEDEX or DHL, an additional fee of USD 35.00 will be applied. We appreciate your understanding regarding this extra cost.

LD101WH2-SL02 LCD Panel Shipping and Package :

LD101WH2-SL02 10.1 inch LVDS 40pins 1366*768 LCD Display Screen 0

LD101WH2-SL02 LCD Panel Shipment Guidelines :

1. Confirm the Model

Before completing your purchase, please double-check that the model you need is exactly the LD101WH2-SL02 We will ship the product based on the model specified in your order. If there are any discrepancies or you need to make changes, please contact us immediately.

2. Verify the Shipping Address

Ensure that the shipping address provided in your order is accurate and complete. We will deliver your order to the address listed in the order details. If you need the shipment to be sent to a different address, please email us the correct address as soon as you have completed your payment. Prompt notification will help us to update the shipping details accordingly.

3. Shipping Timeline

We strive to process and ship all orders promptly. Shipments will be dispatched within 3 business days after we have received your payment. This timeline ensures that we have sufficient time to prepare your order for shipping while maintaining our quality standards.

4. Quality Control and Packaging

Each LCD panel undergoes rigorous testing before it is shipped. This thorough testing process ensures that the panel meets our high standards of quality and functionality. Additionally, we take great care in packaging the LCD panels to prevent any damage during transit. Our secure and robust packaging methods aim to deliver the product to you in perfect condition.

LD101WH2-SL02 LCD Panel Warranty Information :

Warranty Period

All LD101WH2-SL02 LCD panels come with a 60-day warranty from the date of delivery. This warranty covers any defects or issues that may arise with the product during this period.

Reporting Issues

If you discover that the LCD panel is not working correctly upon receipt, please notify us within 7 days. This initial period is crucial for us to address any immediate concerns and provide timely assistance. Notifications received after 7 days may not be eligible for warranty claims, as we reserve the right to refuse any requests made beyond this period.

Assistance and Problem Resolution

Once you inform us of an issue within the specified 7-day window, our team will work with you to resolve the problem as quickly as possible. We aim to provide effective solutions and support to ensure your satisfaction.

Return Merchandise Authorization (RMA)

If the issue cannot be resolved through our support and communication, we will accept a Return Merchandise Authorization (RMA) request. This process allows you to return the defective LCD panel for repair, replacement, or refund as deemed appropriate.

LD101WH2-SL02 LCD Panel FAQ :

Q: How long will I receive my goods LD101WH2-SL02?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of LD101WH2-SL02?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of LD101WH2-SL02?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
