LCD Screen Display Panel

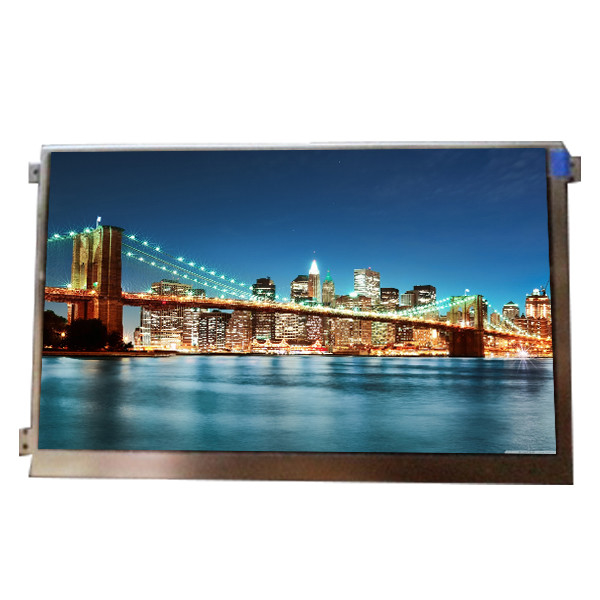

LD070WX6-SH01 NEW 7.0 inch 60%NTSC LCD Screen Display

All Category

Floor Standing Digital Signage

LD070WX6-SH01 NEW 7.0 inch 60%NTSC LCD Screen Display

Brand Name:	LG
Model Number:	LD070WX6-SH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD070WX6-SH01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

800(RGB)×1280, WXGA 215PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

94.2(W)×150.72(H) Mm

Work Mode:

IPS, Normally Black, Transmissive

Light Source:

No B/L

View Direction:

Symmetry

Designed For:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

LD070WX6-SH01 NEW 7.0 inch 60%NTSC LCD Screen Display

LD070WX6-SH01 LCD Panel Product details :

Brand	LG Display
Model P/N	LD070WX6-SH01
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	800(RGB)×1280, WXGA 215PPI
Pixel Format	RGB Vertical Stripe
Active Area	94.2(W)×150.72(H) mm
Bezel Opening	-
Outline(mm)	101.5 × 159.37× 1 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	35 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	3.29% (Typ.)(with Polarizer)
Color Depth	16.7M 60%NTSC
Backlight	No B/L
Mass	38.8±5.0g
Used for	Pad & Tablet
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Suggest COG NT51012 + NT52005, HX8271 + HX8686
Signal Type	MIPI
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
LD070WX6-SH01 NEW 7.0 inch 60%NTSC LCD Screen Display

LD070WX6-SH01 LCD Panel Special Instructions for International Buyers :

For Buyers in Brazil

If you are shipping the goods to Brazil using DHL, FEDEX, or EMS, please provide us with your CNPJ or CPF number. This information is required for customs clearance.

For Buyers in Russia

For shipments to Russia, we can only ship via EMS or ePacket. Please provide the full name of the receiver to ensure accurate delivery.

Duty and Custom Fees

Import duties or custom fees are the responsibility of the buyer and are determined by the buyer's country. If you need us to declare a lower value for customs purposes, please inform us promptly.

For Buyers in Remote Areas

If you are located in a remote area and choose to ship via FEDEX or DHL, an additional fee of USD 35.00 will be applied. We appreciate your understanding regarding this extra cost.

LD070WX6-SH01 LCD Panel Shipping and Package :

LD070WX6-SH01 NEW 7.0 inch 60%NTSC LCD Screen Display 0

LD070WX6-SH01 LCD Panel Shipment Guidelines :

1. Confirm the Model

Before completing your purchase, please double-check that the model you need is exactly the LD070WX6-SH01 We will ship the product based on the model specified in your order. If there are any discrepancies or you need to make changes, please contact us immediately.

2. Verify the Shipping Address

Ensure that the shipping address provided in your order is accurate and complete. We will deliver your order to the address listed in the order details. If you need the shipment to be sent to a different address, please email us the correct address as soon as you have completed your payment. Prompt notification will help us to update the shipping details accordingly.

3. Shipping Timeline

We strive to process and ship all orders promptly. Shipments will be dispatched within 3 business days after we have received your payment. This timeline ensures that we have sufficient time to prepare your order for shipping while maintaining our quality standards.

4. Quality Control and Packaging

Each LCD panel undergoes rigorous testing before it is shipped. This thorough testing process ensures that the panel meets our high standards of quality and functionality. Additionally, we take great care in packaging the LCD panels to prevent any damage during transit. Our secure and robust packaging methods aim to deliver the product to you in perfect condition.

LD070WX6-SH01 LCD Panel Warranty Information :

Warranty Period

All LD070WX6-SH01 LCD panels come with a 60-day warranty from the date of delivery. This warranty covers any defects or issues that may arise with the product during this period.

Reporting Issues

If you discover that the LCD panel is not working correctly upon receipt, please notify us within 7 days. This initial period is crucial for us to address any immediate concerns and provide timely assistance. Notifications received after 7 days may not be eligible for warranty claims, as we reserve the right to refuse any requests made beyond this period.

Assistance and Problem Resolution

Once you inform us of an issue within the specified 7-day window, our team will work with you to resolve the problem as quickly as possible. We aim to provide effective solutions and support to ensure your satisfaction.

Return Merchandise Authorization (RMA)

If the issue cannot be resolved through our support and communication, we will accept a Return Merchandise Authorization (RMA) request. This process allows you to return the defective LCD panel for repair, replacement, or refund as deemed appropriate.

LD070WX6-SH01 LCD Panel FAQ :

Q: Can You declare my order of LD070WX6-SH01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of LD070WX6-SH01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods LD070WX6-SH01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of LD070WX6-SH01 ?

A: We accept T/T , Paypal , western union .
