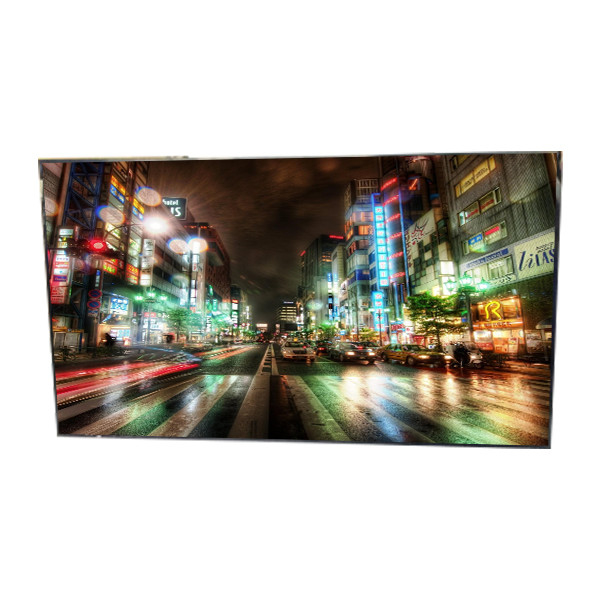

LD070WS1-SL05 7.0 inch 1024*600 LVDS 30pins LCD Screen Display

Brand Name:	LG
Model Number:	LD070WS1-SL05
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD070WS1-SL05

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Work Mode:

IPS, Normally Black, Transmissive

Backlight:

7S3PWLED, Without Driver

Good View At:

Symmetry

Used For:

MID UMPC、Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

LD070WS1-SL05 7.0 inch 1024*600 LVDS 30pins LCD Screen Display

LD070WS1-SL05 LCD Panel Product details :

Brand	LG Display
Model P/N	LD070WS1-SL05
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	156.1(W)×92.5(H) mm
Outline Size	162.8(W)×102.9(H)×5.25(D) mm
Surface	Hard coating
Brightness	400 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	40 (Max.)(Tr+Td)
Display Colors	16.7M 51%NTSC
Lamp Type	7S3PWLED, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	TBD
Application	MID UMPC,Pad & Tablet
Signal Interface	LVDS (1 ch, 8-bit), 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
LD070WS1-SL05 7.0 inch 1024*600 LVDS 30pins LCD Screen Display

LD070WS1-SL05 LCD Panel Special Instructions for International Buyers :

For Buyers in Brazil

If you are shipping the goods to Brazil using DHL, FEDEX, or EMS, please provide us with your CNPJ or CPF number. This information is required for customs clearance.

For Buyers in Russia

For shipments to Russia, we can only ship via EMS or ePacket. Please provide the full name of the receiver to ensure accurate delivery.

Duty and Custom Fees

Import duties or custom fees are the responsibility of the buyer and are determined by the buyer's country. If you need us to declare a lower value for customs purposes, please inform us promptly.

For Buyers in Remote Areas

If you are located in a remote area and choose to ship via FEDEX or DHL, an additional fee of USD 35.00 will be applied. We appreciate your understanding regarding this extra cost.

LD070WS1-SL05 LCD Panel Shipping and Package :

LD070WS1-SL05 7.0 inch 1024*600 LVDS 30pins LCD Screen Display 0

LD070WS1-SL05 LCD Panel Shipment Guidelines :

1. Confirm the Model

Before completing your purchase, please double-check that the model you need is exactly the LD070WS1-SL05 We will ship the product based on the model specified in your order. If there are any discrepancies or you need to make changes, please contact us immediately.

2. Verify the Shipping Address

Ensure that the shipping address provided in your order is accurate and complete. We will deliver your order to the address listed in the order details. If you need the shipment to be sent to a different address, please email us the correct address as soon as you have completed your payment. Prompt notification will help us to update the shipping details accordingly.

3. Shipping Timeline

We strive to process and ship all orders promptly. Shipments will be dispatched within 3 business days after we have received your payment. This timeline ensures that we have sufficient time to prepare your order for shipping while maintaining our quality standards.

4. Quality Control and Packaging

Each LCD panel undergoes rigorous testing before it is shipped. This thorough testing process ensures that the panel meets our high standards of quality and functionality. Additionally, we take great care in packaging the LCD panels to prevent any damage during transit. Our secure and robust packaging methods aim to deliver the product to you in perfect condition.

LD070WS1-SL05 LCD Panel Warranty Information :

Warranty Period

All LD070WS1-SL05 LCD panels come with a 60-day warranty from the date of delivery. This warranty covers any defects or issues that may arise with the product during this period.

Reporting Issues

If you discover that the LCD panel is not working correctly upon receipt, please notify us within 7 days. This initial period is crucial for us to address any immediate concerns and provide timely assistance. Notifications received after 7 days may not be eligible for warranty claims, as we reserve the right to refuse any requests made beyond this period.

Assistance and Problem Resolution

Once you inform us of an issue within the specified 7-day window, our team will work with you to resolve the problem as quickly as possible. We aim to provide effective solutions and support to ensure your satisfaction.

Return Merchandise Authorization (RMA)

If the issue cannot be resolved through our support and communication, we will accept a Return Merchandise Authorization (RMA) request. This process allows you to return the defective LCD panel for repair, replacement, or refund as deemed appropriate.

LD070WS1-SL05 LCD Panel FAQ :

Q: How long is the warranty of LD070WS1-SL05 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LD070WS1-SL05 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LD070WS1-SL05 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LD070WS1-SL05 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
