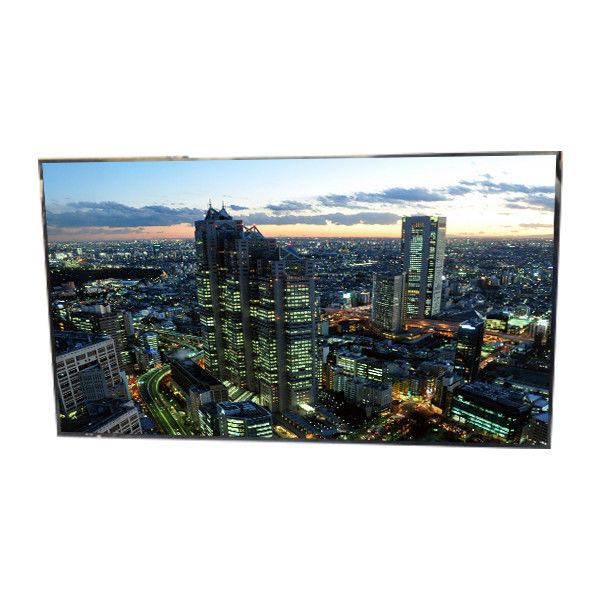

LD050WQ1-TH02 5.0 inch LCD Panel Module 480*272 LCD Screen Display

Brand Name:	LG
Model Number:	LD050WQ1-TH02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LD050WQ1-TH02

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

480×272(RGB), WQVGA 109PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

110.88(W)×62.832(H) Mm

Work Mode:

TN, Normally White, Transmissive

Backlight:

No B/L

Good View At:

Symmetry

Used For:

Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

LD050WQ1-TH02 5.0 inch LCD Panel Module 480*272 LCD Screen Display

LD050WQ1-TH02 LCD Panel Product details :

Brand	LG Display
Model P/N	LD050WQ1-TH02
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	480×272(RGB), WQVGA 109PPI
Pixel Format	RGB Horizontal Stripe
Active Area	110.88(W)×62.832(H) mm
Bezel Opening	-
Outline Dim.	117.4(W)×70.43(H)×1(D) mm
Luminance	0 cd/m²
View Direction	6 o'clock
Viewing Angle	70/70/65/55 (Typ.)(CR≥10)
Plate Thickness	0.50+0.50 mm
Support Color	16.7M 48% NTSC
Weight	-
Frame Rate	-
Treatment	Without Polarizer
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Operating Mode	TN, Normally White, Transmissive
Transmittance	17.0% (Typ.)(without Polarizer)
Light Source	No B/L
Designed For	Digital Photo Frame,Portable DVD Player
Touch Panel	Without
D-IC Detail	COG Suggest SW1811
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
LD050WQ1-TH02 5.0 inch LCD Panel Module 480*272 LCD Screen Display

LD050WQ1-TH02 LCD Panel Special Instructions for International Buyers :

For Buyers in Brazil

If you are shipping the goods to Brazil using DHL, FEDEX, or EMS, please provide us with your CNPJ or CPF number. This information is required for customs clearance.

For Buyers in Russia

For shipments to Russia, we can only ship via EMS or ePacket. Please provide the full name of the receiver to ensure accurate delivery.

Duty and Custom Fees

Import duties or custom fees are the responsibility of the buyer and are determined by the buyer's country. If you need us to declare a lower value for customs purposes, please inform us promptly.

For Buyers in Remote Areas

If you are located in a remote area and choose to ship via FEDEX or DHL, an additional fee of USD 35.00 will be applied. We appreciate your understanding regarding this extra cost.

LD050WQ1-TH02 LCD Panel Shipping and Package :

LD050WQ1-TH02 5.0 inch LCD Panel Module 480*272 LCD Screen Display 0

LD050WQ1-TH02 LCD Panel Shipment Guidelines :

1. Confirm the Model

Before completing your purchase, please double-check that the model you need is exactly the LD050WQ1-TH02 We will ship the product based on the model specified in your order. If there are any discrepancies or you need to make changes, please contact us immediately.

2. Verify the Shipping Address

Ensure that the shipping address provided in your order is accurate and complete. We will deliver your order to the address listed in the order details. If you need the shipment to be sent to a different address, please email us the correct address as soon as you have completed your payment. Prompt notification will help us to update the shipping details accordingly.

3. Shipping Timeline

We strive to process and ship all orders promptly. Shipments will be dispatched within 3 business days after we have received your payment. This timeline ensures that we have sufficient time to prepare your order for shipping while maintaining our quality standards.

4. Quality Control and Packaging

Each LCD panel undergoes rigorous testing before it is shipped. This thorough testing process ensures that the panel meets our high standards of quality and functionality. Additionally, we take great care in packaging the LCD panels to prevent any damage during transit. Our secure and robust packaging methods aim to deliver the product to you in perfect condition.

LD050WQ1-TH02 LCD Panel Warranty Information :

Warranty Period

All LD050WQ1-TH02 LCD panels come with a 60-day warranty from the date of delivery. This warranty covers any defects or issues that may arise with the product during this period.

Reporting Issues

If you discover that the LCD panel is not working correctly upon receipt, please notify us within 7 days. This initial period is crucial for us to address any immediate concerns and provide timely assistance. Notifications received after 7 days may not be eligible for warranty claims, as we reserve the right to refuse any requests made beyond this period.

Assistance and Problem Resolution

Once you inform us of an issue within the specified 7-day window, our team will work with you to resolve the problem as quickly as possible. We aim to provide effective solutions and support to ensure your satisfaction.

Return Merchandise Authorization (RMA)

If the issue cannot be resolved through our support and communication, we will accept a Return Merchandise Authorization (RMA) request. This process allows you to return the defective LCD panel for repair, replacement, or refund as deemed appropriate.

LD050WQ1-TH02 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LD050WQ1-TH02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LD050WQ1-TH02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LD050WQ1-TH02 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
