Medical LCD Panel

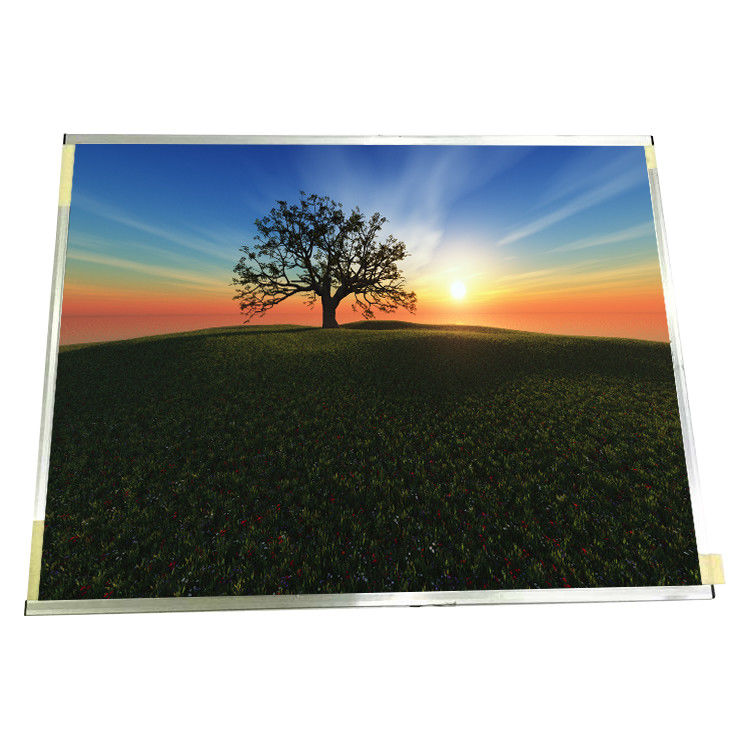

21.3 inch R213RFE-L01 LCD Screen Module for Medical Imaging

All Category

Floor Standing Digital Signage

21.3 inch R213RFE-L01 LCD Screen Module for Medical Imaging

Brand Name:	Innolux
Model Number:	R213RFE-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

R213RFE-L01

Diagonal Size:

21.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2048(RGB)×1536, QXGA 120PPI

Active Area:

433.15(W)×324.86(H) Mm

Surface:

Antiglare, Hard Coating (3H)

Brightness:

1000 Cd/m² (Typ.)

Contrast Ratio:

1500:1 (Typ.) (TM)

Used For:

Medical Imaging

Signal Interface:

LVDS (4 Ch, 8/10-bit) , 102 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

21.3 inch R213RFE-L01 LCD Screen Module for Medical Imaging

R213RFE-L01 LCD Panel Product details :

Innolux LCD Screen R213RFE-L01
Brand	Innolux
Model P/N	R213RFE-L01
Diagonal Size	21.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2048(RGB)×1536, QXGA 120PPI
Pixel Format	RGB Vertical Stripe
Active Area	433.15(W)×324.86(H) mm
Outline Size	457(W)×350(H) ×23.2(D) mm
Bezel Opening	438(W)×330(H) mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	1500:1 (Typ.) (TM)
Luminance	1000 (Typ.)(cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Display Colors	16.7M/1.07B 71% NTSC
Response Time	15/10 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Designed For	Medical Imaging
Panel Weight	3.24±0.05Kgs
Frame Rate	60Hz
Interface Type	LVDS (4 ch, 8/10-bit) , 102 pins Connector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
21.3 inch R213RFE-L01 LCD Screen Module for Medical Imaging

R213RFE-L01 LCD Panel Special Instructions for International Buyers :

For Buyers in Brazil

If you are shipping the goods to Brazil using DHL, FEDEX, or EMS, please provide us with your CNPJ or CPF number. This information is required for customs clearance.

For Buyers in Russia

For shipments to Russia, we can only ship via EMS or ePacket. Please provide the full name of the receiver to ensure accurate delivery.

Duty and Custom Fees

Import duties or custom fees are the responsibility of the buyer and are determined by the buyer's country. If you need us to declare a lower value for customs purposes, please inform us promptly.

For Buyers in Remote Areas

If you are located in a remote area and choose to ship via FEDEX or DHL, an additional fee of USD 35.00 will be applied. We appreciate your understanding regarding this extra cost.

R213RFE-L01 LCD Panel Shipping and Package :

21.3 inch R213RFE-L01 LCD Screen Module for Medical Imaging 0

R213RFE-L01 LCD Panel Shipment Guidelines :

1. Confirm the Model

Before completing your purchase, please double-check that the model you need is exactly the R213RFE-L01. We will ship the product based on the model specified in your order. If there are any discrepancies or you need to make changes, please contact us immediately.

2. Verify the Shipping Address

Ensure that the shipping address provided in your order is accurate and complete. We will deliver your order to the address listed in the order details. If you need the shipment to be sent to a different address, please email us the correct address as soon as you have completed your payment. Prompt notification will help us to update the shipping details accordingly.

3. Shipping Timeline

We strive to process and ship all orders promptly. Shipments will be dispatched within 3 business days after we have received your payment. This timeline ensures that we have sufficient time to prepare your order for shipping while maintaining our quality standards.

4. Quality Control and Packaging

Each LCD panel undergoes rigorous testing before it is shipped. This thorough testing process ensures that the panel meets our high standards of quality and functionality. Additionally, we take great care in packaging the LCD panels to prevent any damage during transit. Our secure and robust packaging methods aim to deliver the product to you in perfect condition.

R213RFE-L01 LCD Panel Warranty Information :

Warranty Period

All R213RFE-L01 LCD panels come with a 60-day warranty from the date of delivery. This warranty covers any defects or issues that may arise with the product during this period.

Reporting Issues

If you discover that the LCD panel is not working correctly upon receipt, please notify us within 7 days. This initial period is crucial for us to address any immediate concerns and provide timely assistance. Notifications received after 7 days may not be eligible for warranty claims, as we reserve the right to refuse any requests made beyond this period.

Assistance and Problem Resolution

Once you inform us of an issue within the specified 7-day window, our team will work with you to resolve the problem as quickly as possible. We aim to provide effective solutions and support to ensure your satisfaction.

Return Merchandise Authorization (RMA)

If the issue cannot be resolved through our support and communication, we will accept a Return Merchandise Authorization (RMA) request. This process allows you to return the defective LCD panel for repair, replacement, or refund as deemed appropriate.

R213RFE-L01 LCD Panel FAQ :

Q: How long will I receive my goods R213RFE-L01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of R213RFE-L01 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of R213RFE-L01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of R213RFE-L01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
