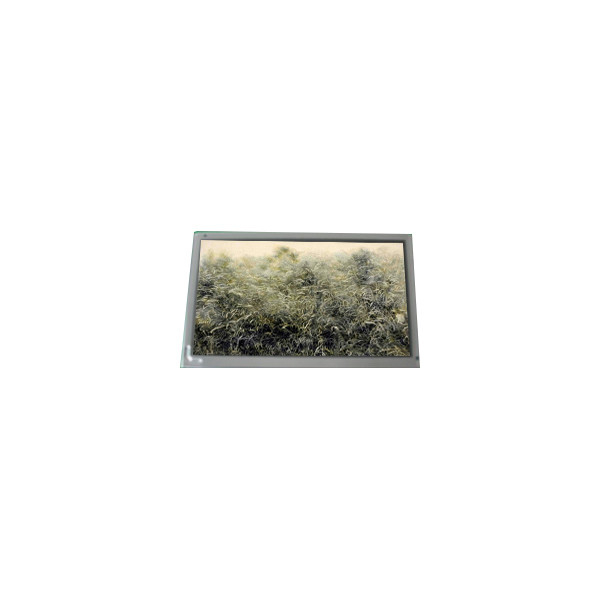

1024*768 LQ150X1LBK3 15.0 inch 380 cd/m2 TFT LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1LBK3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LBK3 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Used For: | Laptop | Refresh Rate: | 60Hz |
Product Description
1024*768 LQ150X1LBK3 15.0 inch 380 cd/m2 TFT LCD Display Panel
LQ150X1LBK3 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1LBK3 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×231.6(H) mm |
| Outline Size | 315.8(W)×240.5(H)×7(D) mm |
| Surface | Glare (Haze 0%), Hard coating (2H) |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Display Colors | 262K 46%NTSC |
| Lamp Type | 1 pcsCCFL, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -25 ~ 60 °C |
| 1024*768 LQ150X1LBK3 15.0 inch 380 cd/m2 TFT LCD Display Panel | |
LQ150X1LBK3 LCD Panel Shipping and Package :
LQ150X1LBK3 LCD Panel FAQ :
Q: When will my order LQ150X1LBK3 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd LQ150X1LBK3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
