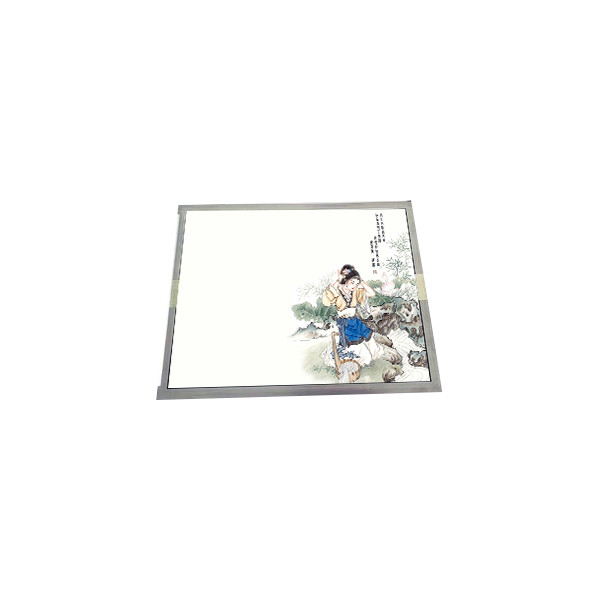

LQ150X1LBE5 15.0 inch LCD Display Module for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1LBE5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LBE5 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Used For: | Laptop | Refresh Rate: | 60Hz |
Product Description
LQ150X1LBE5 15.0 inch LCD Display Module for Laptop
LQ150X1LBE5 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1LBE5 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.6(W)×231.6(H) mm |
| Outline(mm) | 315.8(W)×240.5(H)×7(D) |
| Luminance | 280 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Refresh Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 10/25 (Typ.)(Tr/Td) ms |
| Backlight | 1 pcs CCFL , 10K hours , No Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LQ150X1LBE5 15.0 inch LCD Display Module for Laptop | |
LQ150X1LBE5 LCD Panel Shipping and Package :
LQ150X1LBE5 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LQ150X1LBE5 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
