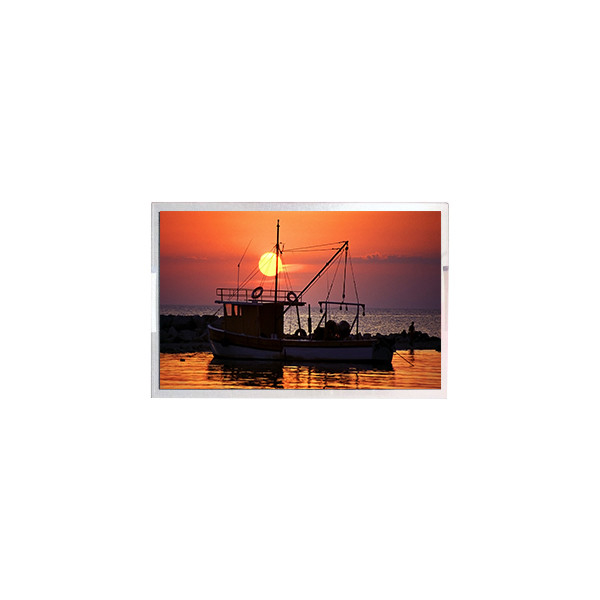

WF101JSYJHLNB0# 10.1 inch 1024*600 LCD Display Screen

Brand Name:	Winstar
Model Number:	WF101JSYJHLNB0#
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

WF101JSYJHLNB0#

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Display Mode:

IPS, Normally Black, Transmissive

Backlight:

WLED , 50K Hours , With LED Driver

Good View At:

Symmetry

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

WF101JSYJHLNB0# 10.1 inch 1024*600 LCD Display Screen

WF101JSYJHLNB0# LCD Panel Product details :

Brand	Winstar
Model P/N	WF101JSYJHLNB0#
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	-
Outline Dim.	235(H)×143(V) ×22.43(D) mm
Treatment	Glare (Haze 0%)
View Direction	Symmetry
Response Time	-
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M
Light Source	WLED , 50K hours , With LED Driver
Weight	-
Designed For	Industrial
Frame Rate	-
Touch Panel	PCAP, I²C/USB
Interface Type	LVDS (1 ch, 8-bit) , 50 pins Connector
Power Supply	12.0V (Typ.)(With Backlight)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Confirmation Before Purchasing WF101JSYJHLNB0# LCD Panel :

Check Model Details: Verify your machine model, screen size, and part number carefully. If you are uncertain about compatibility, please send us the specific model number and photos of your original screen for accurate guidance.

Compatible Model Number: The LED panel we send may have a compatible model number that differs slightly from your original screen's model. However, we guarantee that it will be fully compatible with your machine model.

Quality Assurance: All items undergo testing before shipment to ensure functionality. Please note that adhesive tape is not included by default. If you require adhesive tape, kindly leave us a message when placing your order.

If you have any inquiries or need further assistance regarding the purchase of the WF101JSYJHLNB0# LCD panel, feel free to reach out to us. We are here to help ensure a smooth and successful transaction.

Payment Policy for WF101JSYJHLNB0# LCD Panel :

Accepted Payment Methods: We accept payments via PayPal and ALI, but only with a confirmed address.

Tax Responsibility: Any applicable taxes in the buyer's country are the sole responsibility of the buyer.

Customs Declaration: To help minimize potential taxes for buyers, we may declare a lower value on packages.

WF101JSYJHLNB0# LCD Panel Shipping and Package :

Warranty Policy for WF101JSYJHLNB0# LCD Panel :

We offer the following warranty terms for your WF101JSYJHLNB0# LCD panel:

90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.

Please contact us for further instructions on how to proceed with the replacement process.

Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).

Return Shipping: The buyer is responsible for covering the cost of return shipping.

WF101JSYJHLNB0# LCD Panel FAQ :

Q: Can You declare my order of WF101JSYJHLNB0# to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of WF101JSYJHLNB0# ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods WF101JSYJHLNB0# ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of WF101JSYJHLNB0# ?

A: We accept T/T , Paypal , western union .
